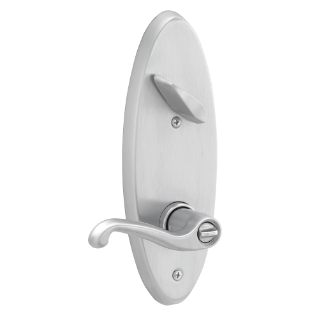

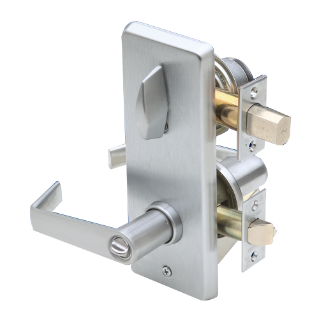

S200 Series Interconnected Lock

Combines the B500 deadbolt with the S Series tubular latch in multiple functions and designs ideal for use in multifamily applications.


Looking for more information? Connect with an Allegion team member for help.


Schlage S200 interconnected locks are designed to offer easy egress and dependable security with four single- or double-keyed functions each made for single motion egress. Focusing on safety, security and long-lasting performance, this lock is tested to exceed 400,000 ANSI cycles. The S200 is easy to install, service, and maintain to keep people and property secure.

Ideal for use on multifamily entrances, military-housing entrances, and small hotel/motel buildings.

Schlage 101 icon

Mechanical Locks

For frequently asked questions, educational resources and technical product materials visit the Mechanical Locks 101 page.


  • UL listed for 3-hour fire door
  • Heat-treated steel locking components for extra strength
  • Solid zinc bolt with hardened steel anti-saw pin
  • Metal wood frame reinforcer uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
  • Free spinning, cylinder collar resists wrenching and prying
  • Removeable security shield protects bolt from ice-pick attack through the door
  • Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
  • Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
  • UL 437 listed option resists drilling and physical attack on the cylinder



  • Four lever options in solid cast zinc for strength and quality
  • Two escutcheon designs
  • Seven available finish options


Functional features

  • Five functions include single and double locking options plus a non-keyed dummy function
  • Adjustable backset has a lock-in-place helix design


Built to Last

  • Independent heavy-duty lever torsion springs for durability and long life
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Non-keyed dummy functions

  • S290 Single dummy trim (ANSI F75)


Keyed functions

Single cylinder

  • S210 Entrance, single locking (ANSI F95)
  • S251 Entrance, double locking (ANSI F97)
  • S270 Classroom lock
  • S280 Storeroom lock (ANSI F98)


  • Deadbolt: Zinc with hardened steel anti-saw pin insert
  • Deadbolt trim ring: 7/16" and 1/8" solid brass
  • Cylinder: Solid brass in a solid zinc housing
  • Deadbolt wood frame reinforcer: Metal with 3" screws standard
  • Latchbolt dust box: Polypropylene
  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance


Door Thickness

  • Door thickness: 1-3/8" to 2" (35 mm to 51 mm) standard
  • Non-handed except Flair design


Trim Options

  • Four lever designs made of pressure cast zinc, plated to match product finish specification
  • Escutcheons: wrought brass, plated to match product finish specification



  • 1" housing diameter; 0.81" x 0.62" x 1" throw
  • Backset: adjustable for 2-3/8" (60 mm) or 2-3/4" (70 mm) standard for standard non-fire-rated and optional fire-rated versions; fire-rated deadbolt with 5" fixed backset optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; round corner options available
  • Strike: 1-1/8" x 2-3/4" with square corners standard; ANSI, round cornered, and thimble options available



  • Backset: Adjustable 2-3/8" or 2-3/4" backset (60 mm or 70 mm) standard; 5" optional
  • Latchbolt: 1/2" (13 mm) throw brass, chrome plated standard
  • Faceplate: square corner 1" x 2-1/4" (25 mm x 57 mm) standard; round corner option available
  • Strike: 1-1⁄8" x 2-3/4" (29 mm x 70 mm) T-strike standard; ANSI and radius corner strike options available
  • Strike lip length: 1-1⁄8" (29 mm) standard; extended lip strikes - 1-1/4" to 2" optional


  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities



  • UL 10C and CAN/ULC-S104 listed
    • 3-hour fire rated as auxiliary locks
    • Letter F and UL symbol on latch front indicate listing
  • UL 437 listed when using Primus high-security UL 437 cylinder


California Fire Code

  • All levers with a return to door of 1/2" (64 mm) or less comply (Neptune and Saturn)



  • Meets BAA (Buy American Act)


S200 interconnected lock finishes

605 Bright brass

605 Bright brass


606 Satin brass


609 Antique brass


613 Oil rubbed bronze


619 Satin nickle


625 Bright chrome


626 Satin chrome

Key cylinder, plug and core face finishes


606 Satin brass


522 Bronze (simulated equivalent)


626 Satin chrome

Open keyways upgradeable to Primus RP


Patented keyways upgradeable to Primus XP

  • Everest 29™ S keyways include S123 (default keyway)
  • Everest 29™ T restricted keyways
  • Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an SFIC cylinders
  • Everest 29™ keyways gain restricted, geography exclusivity in a Primus XP cylinder
  • Available in Conventional and FSIC cylinder formats


Master Keying

  • Factory master keying available
