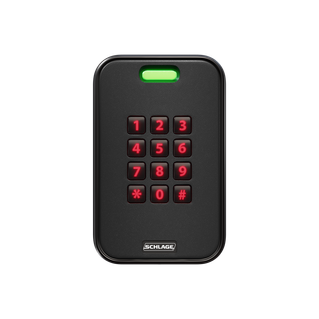

MTK15 Multi-Technology Wall Mount Reader with Keypad

Finish:

Schlage® MTK15 is a keypad reader with smart and proximity technology all in one. It is also compatible with NFC mobile credentials on iOS and Android platforms, allowing facilities to migrate to more secure credential technologies over time as budget permits.

Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

Schlage® multi-technology readers are designed to simplify access control solutions. The MTK15 recognizes keypad, proximity, Schlage smart card and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. The readers use an open architecture platform designed to work with industry standards and common access control system interfaces. The modern design in a variety of finishes can easily complement any facility and its hardware.

The multi-technology readers accept Schlage MIFARE Classic® and MIFARE® DESFire® EV smart credentials as well as most proximity and smart cards from other manufacturers.

Card + PIN (Multi-factor)

Multi-technology

Open Architecture Solution

Mobile NFC

Networked Real-time

Readers

For frequently asked questions, educational resources and technical product materials visit the Readers 101 page.

Learn the Basics

Features & Benefits

Technology

Reads 125 kHz proximity and 13.56 MHz smart credentials - MIFARE Classic® and MIFARE® DESFire® EV1, EV2 and EV3 as well as card serial number (CSN) of other manufacturer's smart credentials
Wiegand and RS-485 output available for simple interface with most access control panels
Compatible with NFC-open smart phones using Schlage mobile credentials
Pair keypad use such as card + PIN (multi-factor authentication for even higher security

Simplicity

There are 5 available models to fit any need (keypad, magnetic stripe)
Compatible with Schlage and other industry manufacturers’ credentials
Limited lifetime warranty

Installation

Accommodates interior, exterior, metal and non-metal installation environments
Quick-connect cable allows for easy installation
Easy-to-install mounting bracket

Specifications

Physical dimensions (HxWxD): 5.1″ x 3.25″ x 0.76″
Frequency: 13.56 MHz and 125 kHz
System interface: Wiegand / Clock & Data / OSDP / Optional RS-485 capability
Standard default PIV output: 75 bit†
Standards: ISO 14443A, 14443B, 15693
Power: 5-16 VDC
Wiring: 18 AWG, 5 conductor stranded/shielded
Operating temperatures: -40° to 158°F (-40° to 70° C)
LED (red, green, or amber) visual indicator and audio feedback
Material: PBT Polymer

† Configurable to other output formats. Check with access control provider for specific support.

Certifications

FCC certification
IC certification
UL 294 listed
RED Directive (15 EU countries)
CE Mark
IP65-rated

Designs & Finishes

There are five available multi-technology reader models to fit any need and works with multiple form factors including wristbands, cards, fobs and tags.

Models

MT11: Mullion mount multi-technology reader
MT15: Single gang mount multi-technology reader
MTK15: Single gang mount multi-technology reader with keypad
MTMS15: Single gang mount multi-technology reader with magnetic stripe
MTMSK15: Single gang mount multi-technology reader with magnetic stripe and keypad

Finishes

Black (standard)

Cool tone gray

Cream

Warm tone brown

Schlage® offers a variety of accessories and replacement parts to help ensure readers are always performing well. Visit the reader accessories data sheet to learn more.

Credential Support

Compatibility

The MTK15 keypad reader recognizes proximity, Schlage smart card and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. Open architecture allows readers to integrate with existing access control systems.

Credential types

Mobile

Schlage NFC Mobile

Smart

Schlage DESFire EV1, EV2, EV3
Schlage MIFARE® Classic
Schlage Smart cards using CSN
HID iClass® CSN
Additional Smart cards using CSN

Proximity

Schlage proximity
HID® proximity
GE/CASI ProxLite®
AWID® proximity
LenelProx®

For full credential system compatibility list, see the data sheet.

Styles

Clamshell
ISO glossy white
Keyfobs
PVC adhesive discs
Wearable wristbands
Custom artwork options

For complete details, visit the Credentials page.
