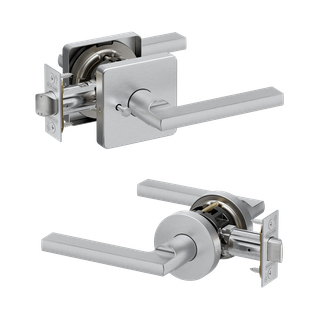

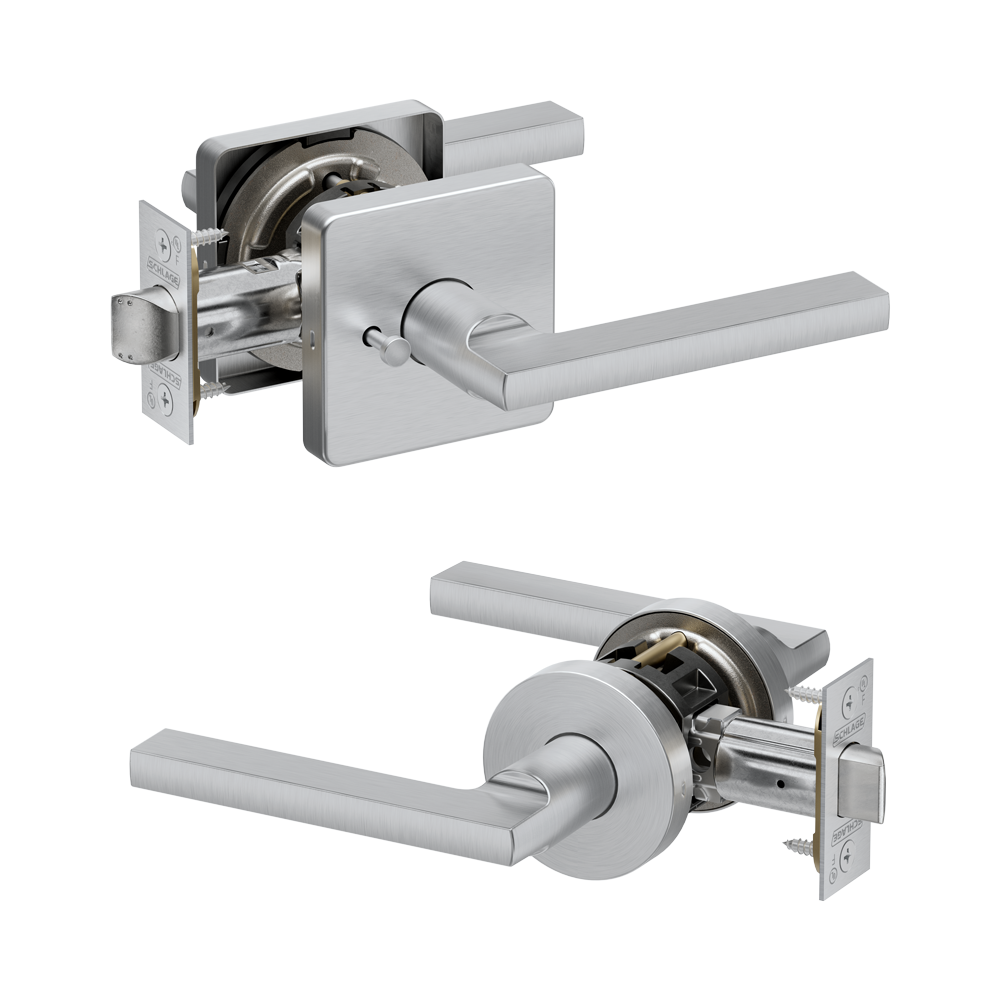

PT Series™ Grade 2 Tubular Lock

Security

• Exceeds ANSI/BHMA Grade 2 requirements by 2X
• UL listed for 3-hour fire door with stainless steel latchbolt standard
• Restoring latch bolt prevents accidental lockouts

Aesthetics

• 10 lever styles constructed of solid cast zinc offer a strong-yet-comfortable feel
• Performance Series exclusive levers (Selena and Playa) and D square rose are shared with the PM Series™ tubular lock
• Additional styles include three rose designs: A small round, C large round, D large square
• Snap on wrought brass rose eliminates exposed rose screws
• Suites with all 10 PM Series levers and 3 roses with shared trims
• Six available finishes across all levers and trims; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze

Functional Features

• Four non-keyed functions; Privacy, Passage Latch, Single and Double Dummy
• Lever set screw provide secure, stable lever atPrtachment and adjustment as need
• Self-adjustable spring cage for accomodating door thicknesses up to 2”
• Passage comes standard with adjustable latch for backsets 2-3/8" to 2-3/4"
• Install alignment collar enables quick, hands-free installation of outside trim
• Lever set screw provide secure, stable lever attachment and adjustment

Built to Perform

• Independent heavy-duty lever torsion springs for durability and long life
• 5-year warranty and 3-year finish warranty (see warranty for full terms)
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Non-keyed functions

• PT10 Passage latch (ANSI F75)
• PT40 Bath/bedroom privacy lock (ANSI F76)

Non-keyed dummy functions

• PT170 Single dummy trim
• PT172 Double dummy trim

Chassis

• Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
• Door Thickness: Standard 1-3⁄8" (35 mm) to 1-3⁄4" (44 mm) up to 2" (51 mm)
• Field reversible handing

Trim Options

• 10 lever designs made of pressure cast zinc, plated to match product finish specification
• 1 stamped brass roses A (2-1/8") for 1-7/8" cross bore
• 2 stamped brass roses C round (2-9/16") and D square (2-9/16") for 2-1/8" cross bore

Latches and Strikes

• PT10 Backset: Adjustable latch comes standard, fits 2-3/8" (60mm) to 2-3/4" (70mm) backsets
• PT40 Backset: Non-adjustable latch provided fits 2-3/4" (70mm) standard or 2-3/4" (60mm) optional
• Latch: Stainless steel with 1/2" (13mm) throw and square corner faceplate
• Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
• Strike lip length: 1-3⁄16" (30 mm)
• Optional faceplate, strike, and lip lengths available

ANSI/BHMA

• ANSI/BHMA A156.2, Series 4000, Grade 2 tubular lock; ANSI/BHMA A156.39 Grade AAA in Security, Durability, and Finish
• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

• UL 10C and CAN/ULC-S104 listed for Passage PT10 and Privacy PT40 locks:
  • 3-hour A label single fire door 4'0" x 8'0"
  • Letter F and UL symbol on latch front indicate listing
• UL 437 listed when using Primus high-security UL 437 cylinder

California Fire Code

• All levers with a return to door of 1⁄2" (13 mm) or less comply (Longitude, Neptune, Rhodes and Tubular)

Product Information

• Schlage PT Series Cut Sheet
• Schlage Performance Series Sales Sheet
• Performance Series Lock Page
• Coming soon! Performance Series Catalog
• Allegion Commercial Warranties

Related Product Information

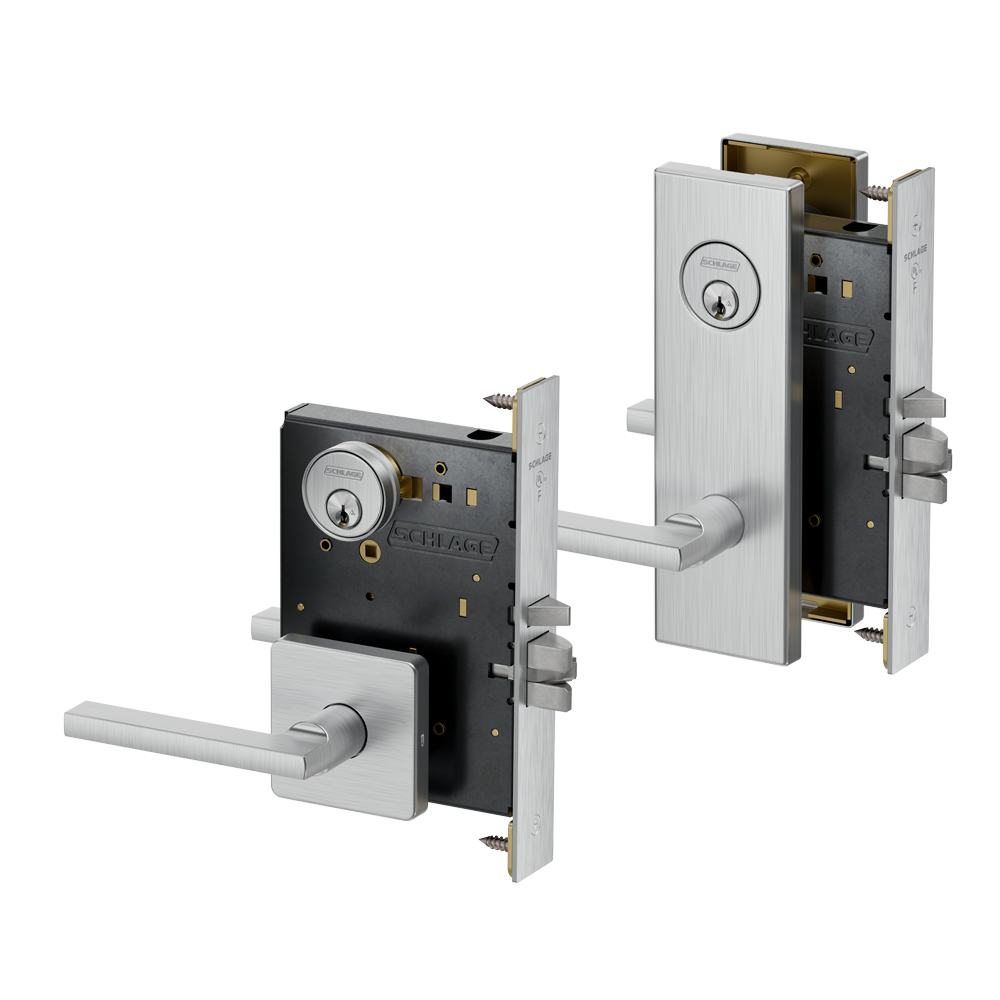

• Schlage PM Series Cut Sheet

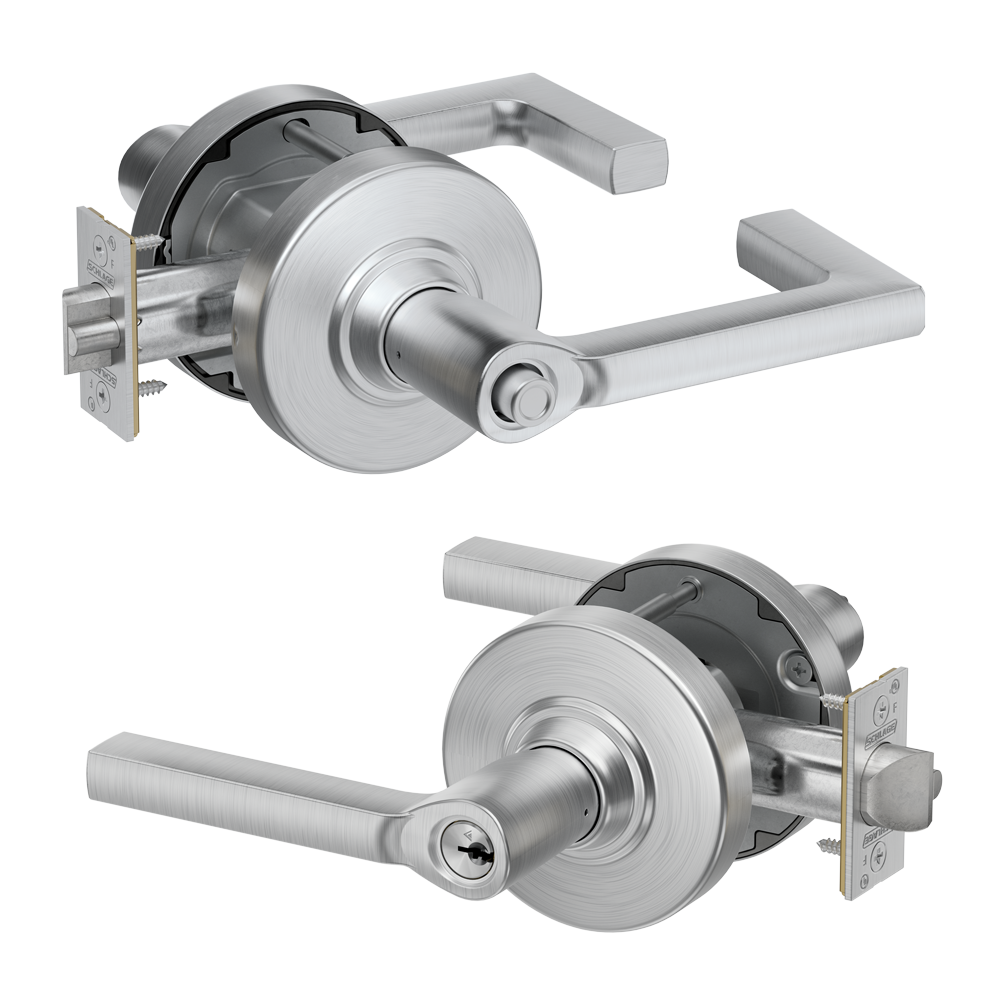

• Schlage PC Series Cut Sheet
