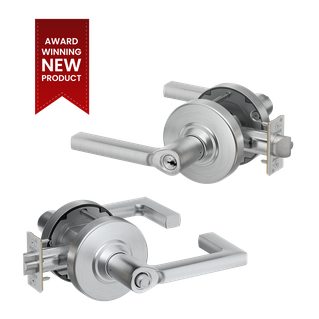

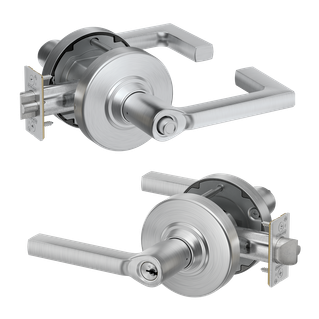

PC Series™ Grade 1 Cylindrical Lock

Security

• Certified to ANSI/BHMA Grade 1 operational and security standards
• UL listed for 3-hour fire door
• Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
• Lock monitoring options; Mechanical Request to Exit (RX) kits sold seperately
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Compatible with over 7 different non-Schlage key systems

Aesthetics

• Eight lever styles constructed of solid zinc offer a strong-yet-comfortable feel
• Snap on wrought brass rose eliminates exposed screws

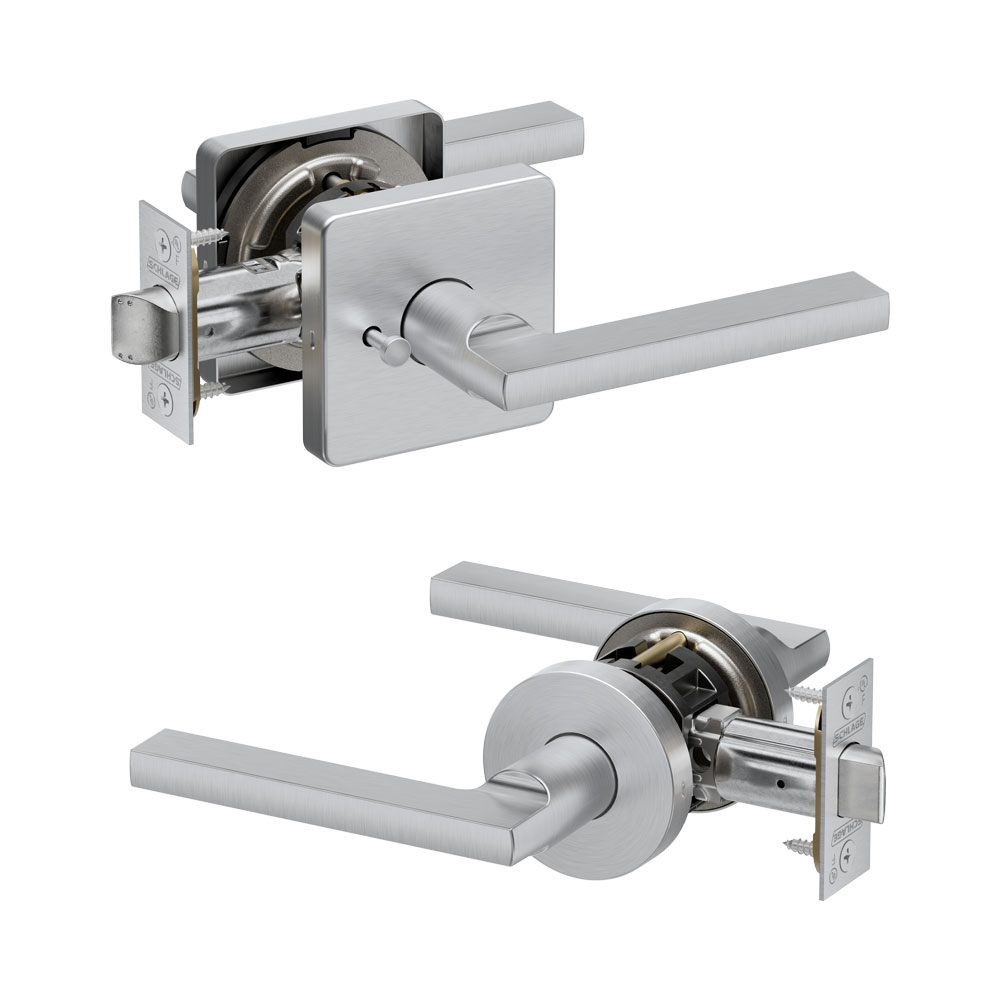

• Suites with PM Series, PT Series, and ALX Series Grade 2 cylindrical locks and more
• All levers suite with Von Duprin exit devices
• Six available finishes across all levers and trims; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze

Functions

• Eight mechanical functions include 4 keyed, 2 non-keyed, 2 dummy
• Keyed; Entrance, Entrance/Office, Storeroom, Classroom Lock Exterior Lockdown,
• Non-keyed; Passage latch, Bed/Bath Privacy
• Dummy: Single and Double Dummy

Built to Perform

• Breakaway spindle keeps door secured in the event of vandalism
• Investment cast steel outside spindle exceeds 2X BHMA grade 1
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• 5-year mechanical warranty

Mechanical RX Kits Sold Seperately on functions marked(*)

Non-keyed functions

• PC10 Passage latch (ANSI F01) (*)
• PC40 Bath/bedroom privacy lock (ANSI F22) (*)

Non-keyed dummy functions

• PC170 Single Dummy
• PC172 Double Dummy

Keyed functions

• PC50 Entrance/office lock (ANSI F82)
• PC53 Entrance lock (ANSI F109)
• PC70 Classroom lock, exterior lockdown only (ANSI F84)
• PC80 Storeroom lock (ANSI F86) (*)

Chassis

• Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
• Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified (self-adjustable)
• Non-handed

Trim Options

• 8  lever designs made of pressure cast zinc, plated to match product finish specification
• Standard or RHO Rose: wrought brass or zinc, plated to match product finish specification

Latches

• Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
• Latchbolt: 1/2" (13 mm) throw stainless steel springlatch or dead atch standard; 3/4" throw, 2-3/4" backset anti-friction deadlatch for pair doors optional
• Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard with screws; Multiple additional square and radius corner options available (see pricebook for details)
• Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
• Strike lip length: 1-3⁄16" (30 mm) standard

ANSI/BHMA

• Complied with A156.2-2022, Series 4000 Grade 1 cylindrical locks

ICC

• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

• UL 10C and CAN/ULC-S104 listed
  • All locks listed for 3-hour fire doors: A label single doors 4' x 8'
  • With upgraded 3/4" latch option: 3-hour pair doors 8' x 8' or 90-minute pair doors 8' x 10'
  • Letter F and UL symbol on latch front indicate listing
• UL 437 listed when using Primus high-security UL 437 cylinder

California Fire Code

• All levers with a return to door of 1/2" (64 mm) or less comply (Rhodes, Sparta, Tubular, Longitude, and Boardwalk)

Federal

• Meets FF-H-106C Series 161

Cylindrical lock and cylinder front housing finishes

Key cylinder, plug and core face finishes

Open keyways upgradeable to Primus RP

• Schlage Classic Obverse open keyways, including Schlage C
• Classic Obverse keyways gain patent protection and restricted, geographic exclusivity in a Primus RP cylinder
• Available in Conventional and FSIC cylinder formats

Patented keyways upgradeable to Primus XP

• Everest 29™ S keyways include S123 (default keyway)
• Everest 29™ T restricted keyways
• Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an
• Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder
• Available in Conventional and FSIC cylinder formats Small Format Interchangeable Cores (SFIC)
• Everest 29™ R restricted keyway family Master Keying
• Factory master keying available

Key System Management

• See Overtur® Key System Management for information on how to view, manage, track and update your key system in a secure, cloud-based environment.

Non-Schlage options

Available levers made to fit LFIC cylinders excluding PC70 classroom function:

• Corbin Russwin 6-pin (ATH, SPA, RHO and TLR only)
• Corbin Russwin 7-pin (RHO only)
• Sargent (ATH, SPA, RHO and TLR only)

Available levers made to fit Conventional cylinders from:

• Corbin Russwin (ATH, SPA, RHO and TLR only)
