Everest 29™ SL Cylinders and Cores

Offered in conventional and FSIC formats including Primus but keyed like a 7-pin SFIC, SL allows 3 cylinder formats to share a single key system.



Looking for more information? Connect with an Allegion team member for help.

Overview

The exclusive SL cylinder creates an opportunity to unify separate key systems into one restricted, A2 keyed system upgradeable to Primus XP security. Offered in both Conventional and Full Size Interchangeable Core (FSIC) formats, the SL cylinder utilizes the same Everest 29 R keyway family as Schlage Small Format IC cylinders and can achieve the same number of master keying combinations of any traditional A2 keying system.

A unique L-pin design allows SL cylinders to accept the 7-pin length common to SFIC cylinders. Security features include the check pin standard in Everest 29 cylinders plus an added independent locking sidebar. In its Primus XP form, SL is the only Schlage cylinder to utilize two sidebar mechanisms making it nearly impossible to bypass.

 Conventional

 FSIC

 Primus Upgradeable

Schlage 101 icon

Key Systems

For frequently asked questions, educational resources and technical product materials visit the Key Systems 101 page.

Security

  • Unique L-pin design incorporates both the Everest 29 check pin and a locking sidebar; the Primus XP cylinder formats utilize two sidebar mechanisms making it nearly impossible to bypass
  • 7-pin design offers four times more keying combinations in a master key system than 6-pin cylinders
  • Enables the Primus XP program's geographic exclusivity to be introduced into an SFIC-based facility
  • High-security Primus UL 437 listed cylinders feature hardened steel drill pins and are tested and certified to be pick- and drill-resistant



Compatibility

  • Allows Everest 29 R and Everest B keyway families to be compatible to all three cylinder formats: Conventional, FSIC and SFIC
  • Fits all Schlage and Falcon locks plus an extensive list of competitor’s locks



Convenience

  • SL creates a path to a unified, restricted key system without having to replace locks

Construction

Conventional SL cylinders fit Schlage modular system for use in mortise and rim applications. See Schlage Conventional Cylinders to learn more.

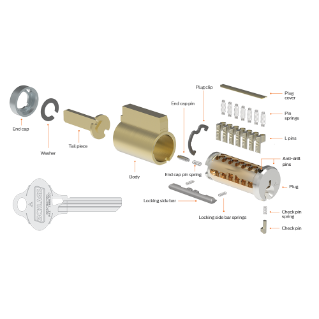

  • Unique L pin design
  • Available formats: Conventional and FSIC
  • 7-pin keying length
  • Solid brass bar stock construction and hardened stainless steel housings (for mortise and rim applications)
  • Rear housing sizes range from 1-1/8" to 1-3/4"
  • 9 available mortise cylinder cam options
  • Locking side bar mechanism improves pick and bump resistance
  • Key duplication on standard (basic) key cutting equipment



Physical and administrative security

  • Enhanced security: patented, restricted Everest 29 R keys require a check pin in the cylinder
  • Upgraded security: patented Primus cylinders add a secondary, independent sidebar and finger pin locking mechanism and are available in 5 levels of geographic exclusivity



Application

  • Master keying and Primus options available
  • Available as rim cylinders for exit devices including Von Duprin and other straight cam applications

Mortise and rim front housing finishes

605 Bright brass

605 Bright brass

606 Satin brass

606 Satin brass

609 Antique brass

609 Antique brass

612 Satin bronze

612 Satin bronze

613 Oil rubbed bronze

613 Oil rubbed bronze

619 Satin nickel

619 Satin nickel

622 Matte black

622 Matte black

625 Bright chrome

625 Bright chrome

626 Satin chrome

626 Satin chrome

629 Bright stainless steel

629 Bright stainless steel (conventional only)

630 Satin stainless steel

630 Satin stainless steel (conventional only)

643e Aged bronze (simulated equivalent)

643e Aged bronze (simulated equivalent)

Plug/core face finishes

606 Satin brass

606 Satin brass

613 Oil rubbed bronze

613 Bronze (simulated equivalent)

622 Matte black

622 Matte black

626 Satin chrome

626 Satin chrome

Available cylinder formats

  • 7-pin Conventional SL
  • 7-pin Full Size Interchangeable Core (FSIC) SL



Primus security upgrade options

  • The Everest 29™ R 7-pin restricted keyways of an SFIC are available in Primus XP SL 7-pin Conventional and FSIC formatted cylinders



Upgrades for legacy Everest key systems

  • Everest 29 R keyways are backwards compatible to the legacy Everest B 7-pin keyway family
  • Legacy Everest B keyways are upgradeable to Primus XP as SL 7-pin Conventional and FSIC formatted cylinders



Master Keying

  • Factory master keying available

Electronic validation through the restrictedproduct.allegion.com website (Chrome browser recommended) allows users to easily manage all order authorizations for restricted key systems.

  • Eliminates paperwork and saves time
  • Provides a secure communication portal for generating restricted product authorizations
  • Creates electronic face sheets that can be faxed or emailed
  • Enables user review of order authorization history
  • Allows users to manage who can generate restricted product authorizations



For more information



The Allegion interactive key systems chart can help you learn about layered security and how to apply it in your building.
