Everest 29™ Keyways

Open or restricted, patent protected Everest 29 has an undercut key design and cylinder checkpin for an enhanced level of physical security.



Looking for more information? Connect with an Allegion team member for help.

Overview

The essential building blocks of a well protected Schlage key system begin with patented Everest 29 keyways. These keyway families offer the greatest levels of versatility as part of a layered security plan utilizing standard Everest 29 cylinders. They offer upgraded security as Primus XP cylinders, and high-security as Primus UL 437 cylinders. Schlage's commitment to helping assure key system integrity over time means that even older Everest key systems can be easily updated to improve security or regain key control and patent protection using compatible Everest 29 cylinders and keys.

Everest 29 restricted key systems protect against unauthorized duplication two ways. First, the key blanks are tightly controlled by Schlage to ensure access for only authorized dealers and end users. Secondly, patent protection deters duplication of the design—an offense subject to federal law. They are also available as open, Everest 29 S keyways to give you the level of security you need for every application.

 Conventional

 Primus Upgradeable

Schlage 101 icon

Key Systems

For frequently asked questions, educational resources and technical product materials visit the Key Systems 101 page.

Security

  • The undercut design provides patent protection for Everest 29 keys until 2029

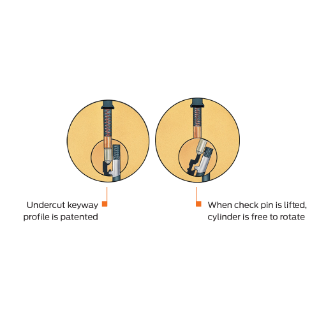

  • Cylinders feature a unique check pin interaction which improves the physical security of the lock
  • Non-restricted Everest 29 S keyway family can be upgraded and restricted when purchased as patented Primus XP cylinders and keys
  • Everest 29 R and T keys are tightly controlled as restricted keyway families and can be upgraded to Primus XP to gain a unique, factory-milled side bitting design that is geographically defined and can be made exclusive to the user at a local or even national level
  • Everest 29 high-security Primus UL 437 listed cylinders feature hardened steel drill pins and are tested and certified to be pick- and drill-resistant



Compatibility

  • Available formats: 6-pin Conventional and FSIC (S and T families); 7-pin Conventional and FSIC as SL cylinders, and SFIC (R family)
  • Compatible to legacy Everest keyways
  • Cylinder formats available to fit an extensive list of competitor’s locks, see Conventional Cylinders or FSIC Full Size Interchangeable Cores for details
  • Multiple key sections



Convenience

  • Non-restricted Everest 29 S keyways do not require the ordering formalities needed for restricted products
  • Primus restricted product order authorizations are managed online at restrictedproduct.allegion.com
  • A larger, rounded key bow creates quick visual differentiation between legacy Everest and Everest 29
  • Factory master keying available for all levels

Keyway family

  • Everest 29 keyway families include large format keying S and T families and small format R key family
  • Numeric designations are used for operating and multi-section keys (example S123 is the standard stock operating keyway, S145 is the beginning of all Everest 29 S masterkey systems)

Mortise and rim front housing finishes

605 Bright brass

605 Bright brass

606 Satin brass

606 Satin brass

609 Antique brass

609 Antique brass

612 Satin bronze

612 Satin bronze

613 Oil rubbed bronze

613 Oil rubbed bronze

619 Satin nickel

619 Satin nickel

622 Matte black

622 Matte black

625 Bright chrome

625 Bright chrome

626 Satin chrome

626 Satin chrome

629 Bright stainless steel

629 Bright stainless steel (conventional only)

630 Satin stainless steel

630 Satin stainless steel (conventional only)

643e Aged bronze (simulated equivalent)

643e Aged bronze (simulated equivalent)

Plug/core face finishes

606 Satin brass

606 Satin brass

613 Oil rubbed bronze

613 Bronze (simulated equivalent)

622 Matte black

622 Matte black

626 Satin chrome

626 Satin chrome

Available cylinder formats

  • 6-pin Conventional
  • 7-pin Conventional SL
  • 6-pin Full Size Interchangeable Core (FSIC)
  • 7-pin FSIC SL
  • 7-pin Small Format Interchangeable Core (SFIC)



Primus security upgrade options

  • Everest 29™ S open keyways include S123 which is the default keyway for all Schlage locksets as Conventional and FSIC
  • Everest 29™ T restricted keyways as Conventional and FSIC
  • Everest 29™ R restricted keyways as a SFIC
  • Everest 29™ R restricted keyways as SL cylinders in Conventional and FSIC formats with the same A2 pinning style of an SFIC



Upgrades for legacy Everest key systems

  • Everest 29 R, S and T keyways are backwards compatible to the legacy Everest B, C and D keyway families respectively
  • Legacy Everest C and D keyways are upgradeable to Primus XP
  • Legacy Everest B keyways are upgradeable to Primus XP as SL 7-pin Conventional and FSIC formatted cylinders



Master Keying

  • Factory master keying available

Electronic validation through the restrictedproduct.allegion.com website (Chrome browser recommended) allows users to easily manage all order authorizations for restricted key systems.

  • Eliminates paperwork and saves time
  • Provides a secure communication portal for generating restricted product authorizations
  • Creates electronic face sheets that can be faxed or emailed
  • Enables user review of order authorization history
  • Allows users to manage who can generate restricted product authorizations
