HSLR Electrified Ligature-resistant Cylindrical Trim

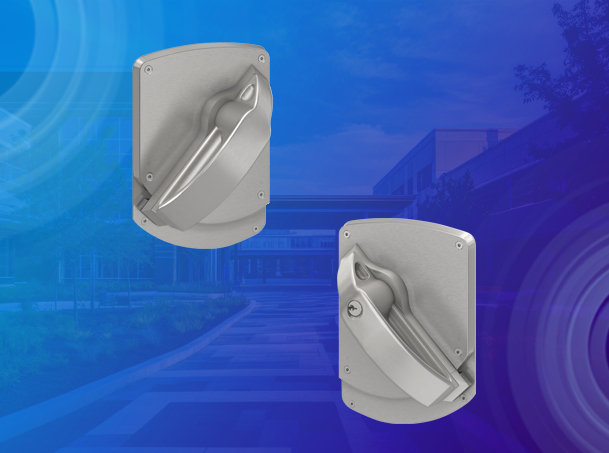

High Security Ligature-Resistant (HSLR) trim on the ND Series cylindrical chassis is made for behavioral health patient protection and is offered in 2 functions including a Vandlgard® option.



Looking for more information? Connect with an Allegion team member for help.

Overview

Schlage offers a comprehensive portfolio of door hardware that reduces the risk of injury or death due to ligature strangulation in all areas, but the HSLR (High Security Ligature Resistant) trim is specifically recommended for these applications. The patented crescent-style handle design has quickly become the standard for ligature resistance and accessibility. It is recognized by the widely-accepted New York State Office of Mental Health (NYS-OMH) Patient Safety Standard. Additionally, the motorized operation is also quieter than solenoid-based designs to help contribute to healing environments.

Ideal for use on:

  • Any high-risk behavioral health setting doors
  • Secured-use hospital room doors
  • Detention center doors

 Heavy Duty

 Monitoring Options

 Primus Upgradeable

Schlage 101 icon

Electrified Locks

For frequently asked questions, educational resources and technical product materials visit the Electrified Locks 101 page.

Security

  • Provides a high level of ligature-resistance in an ADA compliant solution to positively contribute to healing environments
  • Exceeds ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Vandlgard® option allows the outside lever to rotate freely to prevent damage from excessive force while in a locked state
  • Lead lining for use in X-ray or other rooms with radiation concern
  • Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
  • Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security



Aesthetics

  • Available in 630 Satin Stainless Steel finish
  • ADA compliant - ”no pinch, no grasp”
  • Quiet, motorized activation



Functional features

  • Keyed storeroom function with Vandlgard option and non-keyed exit lock function
  • 24 additional non-electrified HSLR ligature-resistant cylindrical trim function options available (see separate web page for details)
  • Universal input voltage auto detects 12V or 24V DC
  • Low maximum current draw allows multiple locks on a single power supply
  • Energy-efficient low holding current
  • Switch on chassis allows field selectable fail safe/fail secure setting



Built to Last

  • Built on the ND Series chassis, Schlage's most robust Grade 1 cylindrical lock
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Electrified functions (see ND Series electrified cylindrical lock for details)

Non-keyed functions

  • ND12EL/EU Exit lock, electrically locked/unlocked



Keyed functions

  • ND80EL/EU Storeroom lock, electrically locked/unlocked with Vandlgard® ND96EL/EU

Chassis

  • Chassis: Zinc and steel components plated for corrosion resistance
  • Door thickness: 1-3/4" (44 mm) standard
  • Specify handing with order



Trim Options

  • Crescent style handle design in cast stainless steel
  • Large plate escutcheon: 6.17” x 8.48” (152 mm x 335 mm x 8 mm); cast brass
  • Handle projection from door is 3.01" (58 mm)



Latches

  • Backset: 2-3/4" (70 mm) standard; 2-3/8", 3-3/4", and 5" optional
  • 2-3/4" backset anti-friction fire door latch optional
  • Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; square corner 1" x 2-1/4" (25 mm x 57 mm) for 2-3/8" backset doors
  • Latchbolt: 1/2" (13 mm) throw oil impregnated stainless steel standard; 3/4" throw anti-friction bolt for pair doors optional
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; T-strike with box and T-strike with deep box for fire door latch optional
  • Strike lip length: 1-3⁄16" (30 mm) standard; extended lip strikes - 1-3⁄8" and 1-1/2" optional



Electric

  • Input voltage: auto detects 12-24V DC, +/-10%
  • Operating mode: fail safe or fail secure via switch on chassis
  • Current draw: 0.23 amps maximum; 0.01 amps holding

ANSI/BHMA

  • ANSI A156.2-2011 Series 4000, Grade 1
  • ANSI A156.25 (indoor)



NYS-OMH

  • Patient Safety Standards, Materials and Systems Guidelines Recommended by the New York State Office of Mental Health



ICC

  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities



UL/cUL

  • UL/cUL listed 3-hour fire door
    • 3-hour fire doors: A label single doors 4' x 10' and pair doors 8' x 8' with 3/4" latch option
    • 90-minute fire doors: 8' x 10' with 3/4" latch option
    • Letter F and UL symbol on latch front indicate listing
  • UL 437 listed when using Primus high-security UL 437 cylinder



California Fire Code

  • All levers with a return to door of 1/2" (64 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude, and Boardwalk)



Windstorm

  • Florida Building Code (ASTM E330, E1886, E1996)
  • Miami Dade (TAS 201, 202, 203) requirements for hurricanes



Federal

  • Meets FF-H-106C Series 161



BAA/TAA

  • Meets BAA (Buy American Act)

Lock trim finish

630 Satin stainless steel

630 Satin stainless steel

Key cylinder, plug and core face finishes

626 Satin chrome

626 Satin chrome

Open keyways upgradeable to Primus RP

  • Schlage Classic Obverse open keyways, including Schlage C
  • Classic Obverse keyways gain patent protection and restricted, geography exclusivity in a Primus RP cylinder
  • Available in Conventional and FSIC cylinder formats



Patented keyways upgradeable to Primus XP

  • Everest 29™ S keyways include S123 (default keyway)
  • Everest 29™ T restricted keyways
  • Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an SFIC cylinders
  • Everest 29™ keyways gain restricted, geography exclusivity in a Primus XP cylinder
  • Available in Conventional and FSIC cylinder formats



Small Format Interchangeable Cores (SFIC)

  • Everest 29™ R restricted keyway family



Master Keying

  • Factory master keying available



Non-Schlage options

Available levers made to fit LFIC cylinders from:

  • Medeco (ATH, SPA, RHO and TLR only)
  • Corbin Russwin 6-pin (ATH, SPA, RHO and TLR only)
  • Corbin Russwin 7-pin (RHO only)
  • Sargent (ATH, SPA, RHO and TLR only)
  • Yale 6-pin (ATH, SPA, RHO and TLR only)
  • Yale 7-pin (RHO only)

Available levers made to fit Conventional cylinders from:

  • Corbin Russwin (ATH, SPA, RHO and TLR only)
  • Sargent (ATH, SPA, RHO and TLR only)
