NDE Mobile Enabled Wireless Cylindrical Lock

Designed to affordably extend the benefits of access control to more doors, delivering intelligence via Allegion software or our PACS and Proptech system alliances.



Looking for more information? Connect with an Allegion team member for help.

Overview

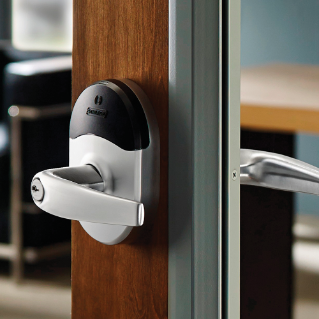

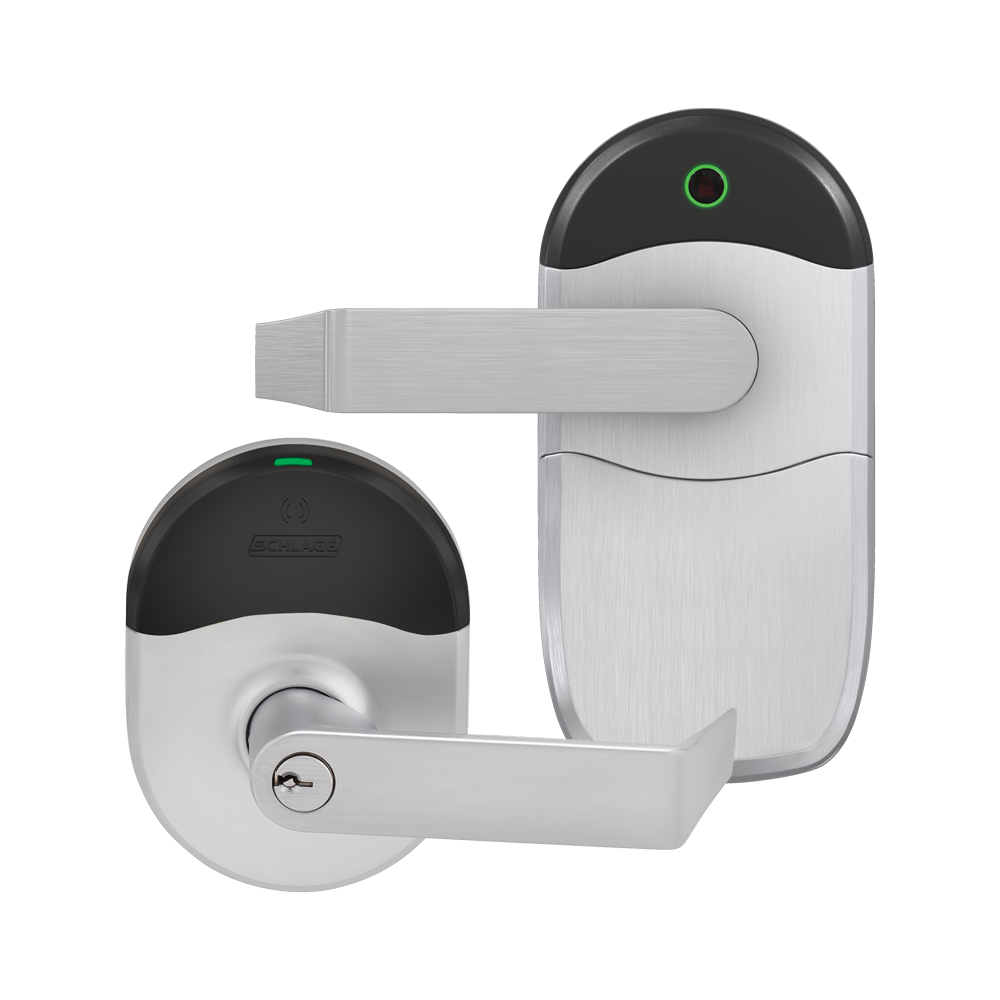

The Schlage® NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. It can function in offline or No-Tour mode or as a networked lock with either periodic check-ins or real-time management.

The open architecture design allows the NDE to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements and gives them the ability to move to a fully networked solution at any time.

The NDE is compatible with a wide range of mobile, smart and proximity credential technologies and can operate in storeroom, office, privacy, or apartment functions using its interior push button with indication.

NDE works within existing network architecture and can exist in the same EAC system as other wireless locks including Schlage Control™, AD-400 and LE.

 Mobile BLE

 Multi-technology

 No-Tour

 Wireless

 Mobile NFC

 Networked Real-time

 Open Architecture Solution

 UL294

Schlage 101 icon

Electronic Locks

For frequently asked questions, educational resources and technical product materials visit the Electronic Locks 101 page.

Security

  • Electronics bring more visibility and control to the opening
  • Ready for the future with the ability to read Bluetooth® and NFC mobile credentials, along with smart (including Schlage MIFARE Classic® and MIFARE® DESFire® EV) and proximity
  • Built on proven Schlage ND Series, Grade 1 mechanical cylindrical lock



Efficiency

  • Open architecture platform makes it easier for PACS providers to integrate
  • Flexible connectivity options to fit application and system requirements
  • Suites with Schlage mechanical and electrified ND Series locks with many common parts



Convenience

  • Ability to use Allegion or 3rd party PACS software
  • No need to install additional components – the NDE combines the cylindrical lock, credential reader, and access control sensors together into a small footprint that is easy to install
  • Interior push button with indication supports storeroom, office, privacy, and apartment applications; field selectable
  • Fits standard cylindrical prep with minor modifications
  • Wireless configuration from connected smart phones and tablets

NDE Reader options

  • Multi-technology; supports smart (13.56 MHz), proximity (125 kHz), Bluetooth® (BLE, 2.4GHz) and NFC mobile credentials
  • Si option; supports HID iCLASS®, iCLASS SE®, Seos® smart and NFC mobile



Connectivity options

  • Bluetooth; at the lock
  • Wi-Fi access point; periodic check-ins
  • No-Tour
  • Real-time using the ENGAGE™ Gateway; RS-485 to access control panel or IP to host software



Communication standards

  • 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
  • WPA2, WPA, WEP, 802.1x
  • Bluetooth low energy (version 4.2)
  • Transport Layer Security (TLS) version 1.2
  • Advanced Encryption Standard (AES), 256-bit



Available status signals1

  • Lock/unlock status
  • Request-to-exit
  • Door position
  • Interior cover tamper
  • Magnetic tamper
  • Battery status
  • Communication status

1 Consult your access control software provider for specific scope of support.



Lockdown capability

  • Only available for networked real-time applications using ENGAGE Gateway and PAC system
  • Wake-up on Radio feature enables response to lock/unlock command from host in less than 5 seconds



Additional

  • Gateway communication range: up to 30 feet; more details on us.allegion.com/gateway
  • Data rate for NDEB: up to 54 Mbps via Wi-Fi
  • Battery life: up to 2 years with 4 AA batteries
  • Exterior Temp: -31° to 151°F (-35° to 66°C) / -13° to 151°F (-25° to 66°C) (NDEBSi)
  • Interior Temp: 32° to 120°F (0° to 49°C) (battery)
  • Humidity: 0 - 100% non-condensing



For full electronic specifications please reference the NDE data sheet.

Chassis

  • Built on Schlage ND mechanical cylindrical lock
  • Cylindrical 161L door prep with minor modifications



Cylinder and keys

  • Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys
  • Factory master keying available
  • Conventional (KIL), FSIC, and SFIC cylinder options
  • Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders



For full mechanical specifications please reference NDE data sheet.

The standard multi-technology reader supports Bluetooth and NFC mobile credentials1, along with smart and proximity technologies. The NDE enables a gradual transition path from older credentials to the more secure and versatile smart or mobile technologies.

Also available is the Si reader option which provides added capability to read the secure application area on HID smart and NFC mobile credentials.

Credential technology support

  • Smart (13.56 MHz); including Schlage MIFARE Classic and Schlage MIFARE DESFire EV
  • Bluetooth® mobile (BLE, 2.4 GHz)
  • NFC mobile; including Mobile Student ID in Apple Wallet and Google Pay
  • Proximity (125 kHz)

For full credential compatibilities, please reference the NDE data sheet.

1Use of mobile credential on the NDE mobile enabled lock is dependent on availability of compatible mobile credential.



At Schlage, we understand that credentials are key to a successful access control plan. That is why we offer Schlage Credential Services - designed to deliver a whole new level of security, adaptability, and flexibility.

Credential Services from Schlage include:

  • Storeroom/Classroom
  • Office
  • Privacy
  • Apartment

Lock functions are selectable in the ENGAGE Mobile App; capabilities will vary by access control system.


Design
  • 9 popular lever styles
  • 9 finishes
  • Weather-resistant for interior and exterior applications
Athens

Athens

Boardwalk

Boardwalk

Broadway

Broadway

Latitude

Latitude

Longtitude

Longtitude

Omega

Omega

Rhodes

Rhodes

Sparta

Sparta

Tubular

Tubular

Warm tone finishes

605 Bright brass

605 Bright brass

606 Satin brass

606 Satin brass

612 Satin bronze

612 Satin bronze

643e Aged bronze (simulated equivalent)

643e Aged bronze (simulated equivalent)

Cool tone finishes

619 Satin nickel

619 Satin nickel

622 Matte black

622 Matte black

625 Bright chrome

625 Bright chrome

626 Satin chrome

626 Satin chrome

626AM Satin chrome with antimicrobial coating

626AM Satin chrome with antimicrobial coating

Suiting

Suites with Schlage ND cylindrical mechanical and electrified locks. Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices.

Allegion Solutions

ENGAGE Cloud-Based Web and Mobile Apps deliver simple and convenient site set-up as well as the ability to manage users, assign access privileges and view lock audits & alerts from anywhere. Updates can be delivered per the site’s requirements:

  • At the lock using a mobile device
  • Via smart or mobile credentials in a No-Tour system
  • By leveraging the existing Wi-Fi network for periodic daily updates



ISONAS Pure Access Cloud is for sites needing low to medium complexity access control management and delivers periodic updates to the lock via Wi-Fi™



Physical Access Control System (PACS) Alliance Solutions

For broader capabilities including real-time lockdown, NDE wireless locks have been integrated into 40+ leading physical access control systems through our PACS Alliance program. Features and capabilities will vary by system.

Click here to see which PACS providers have integrated Schlage intelligent locks.

Or visit the Technology Alliances web page for solution sheets and technical information.

  • ANSI/BHMA A156.25 locked outdoor
  • ANSI/BHMA A156.2, Series 4000, Grade 1
  • UL 294
  • ULC 60839
  • UL 10C 3 hour
  • CSA C22.2 No. 205-M1983
  • FCC Part 15
  • Industry Canada (IC)
  • ADA compliant
  • ICC ANSI A117.1
  • FL1592, FL10356, FL12400, FL14482
