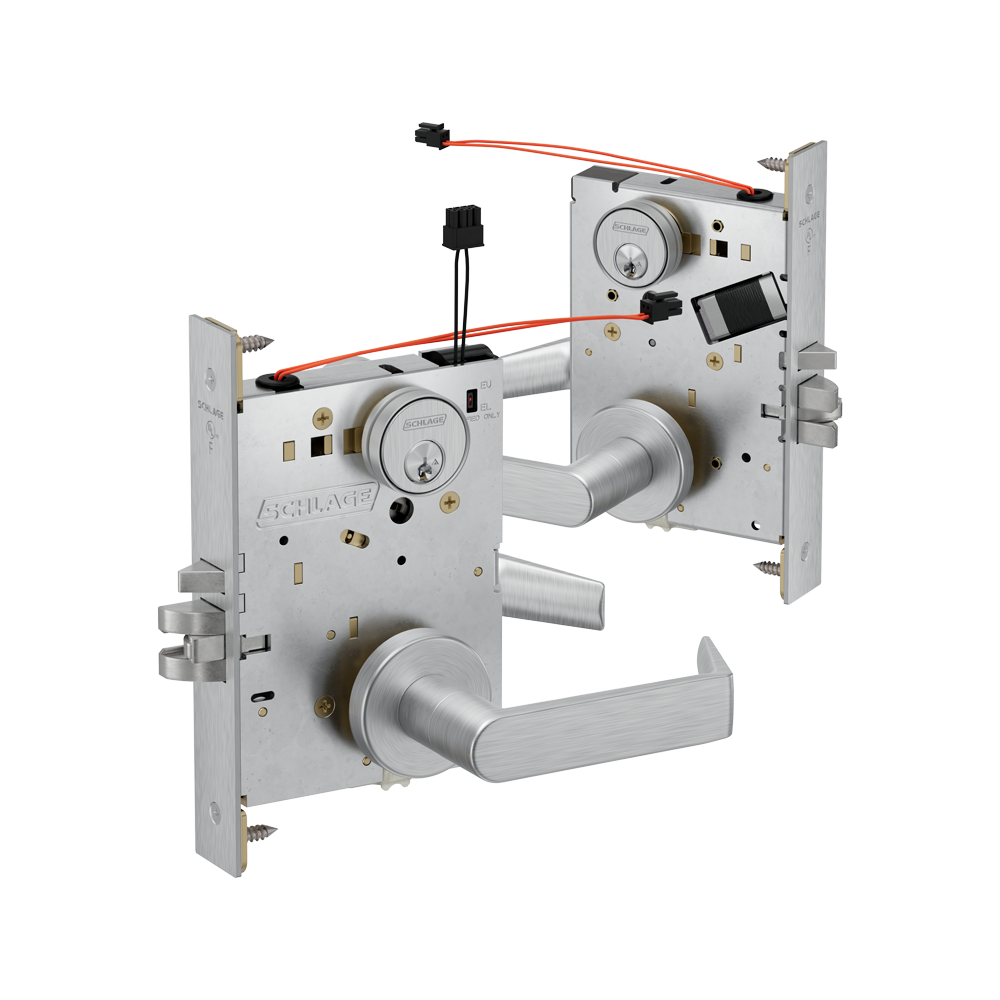

HL Series Electrified Mortise Hospital Latch

Based on the L Series mortise chassis, the HL is EL/EU selectable and offered in 2 functions and 8 finishes plus antimicrobial coating options.



Looking for more information? Connect with an Allegion team member for help.

Overview

Hospitals and other health care environments have special requirements for noise reduction to help patients heal faster and staff perform efficiently. The HL Series latches are designed specifically for quiet operation utilizing the L Series chassis to add superior strength and durability. A short throw angle allows door opening with an easy push or pull action and the motorized operation is also quieter and more energy efficient than solenoid-based designs.

Ideal for use on:

  • Secured-use patient room doors
  • Work areas where quiet concentration is desired
  • Busy traffic areas to reduce noise
  • Chapels or auditoriums where noise can be disturbing
  • Office and administrative areas

 Heavy Duty

 Quiet

 Primus Upgradeable

Schlage 101 icon

Electrified Locks

For frequently asked questions, educational resources and technical product materials visit the Electrified Locks 101 page.

Security

  • HL mortise chassis is tested and certified to ANSI/BHMA Grade 1 operational and security standards
  • UL Listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
  • Pin-in-socket security screws optional for extra protection
  • Available lead lining for use in X-ray or other rooms with radiation concern
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Lock monitoring options include request to exit (RX)
  • Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
  • Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security



Aesthetics

  • Quiet functionality: cushioned action minimizes noise from depression and release of paddle; quiet, motorized activation
  • Classic design suites with existing solutions
  • Variety of vertical or horizontal mounting positions fit a wide range of applications
  • Optional "PUSH” and “PULL” engraving on handles
  • Eight available finishes with options for antimicrobial coating
  • Low holding current produces minimal heat, eliminating “hot paddles” in electrically locking applications



Functions

  • Single and double cylinder keyed functions available
  • 14 additional non-electrified HL Series quiet mortise hospital latch functions available (see separate web page for details)
  • Compatible with Von Duprin 9875/9975 mortise exit device



Installation simplicity

  • Auto detects 12 or 24V DC
  • Low maximum current draw allows multiple locks on a single power supply
  • Case-mounted switch allows field selectable fail safe/fail secure setting
  • Modular design allows RX feature to be added at a later time without opening the lock case



Built to Last

  • Two piece anti-friction tongue in latch bolt reduces wear
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Electrified functions listed beginning with L/LV can be ordered with or without Vandlgard option. Both functions are field selectable Electrically Locked (EL) or Electrically Unlocked (EU).

Keyed non-deadbolt functions

  • HL6-9092EL/EU Electrically locking/unlocking outside lever, outside cylinder
  • HL6-9095EL/EU Electrically locking/unlocking both levers, double cylinder



Other electrified function options



Non-electrified

Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm)
  • Door thickness: 1-3/4" (44 mm)
  • Non-handed
  • Mounting positions: handles down or horizontal with handles pointed away from latch



Trim Options

  • Paddle lever design made of brass or stainless steel
  • Optional engraved handles with "push" and "pull" messaging
  • See HL/PL Series tubular hospital latch for bored lock installation options
  • Dimensions: body 2 9⁄16” x 5 1/2” (65 mm x 140 mm); paddle 1 1/2" x 4 1/2" (38 mm x 114 mm); projection from door 2 5/8" (67 mm)
  • Available 1/8" thick lock case lead lining option for use in X-ray or other rooms with radiation concern



Latches

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ASA strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; bent tab strike optional 1-1/4" X" x 4-7/8" " (32 mm x 124 mm); dust box included



Electric

  • Input voltage: auto detects 12-24V DC
  • Operating mode: Fail Safe or Fail Secure via switch on chassis
  • Current draw: 12V operating voltage: Max input current requirement is 1A. 24V operating voltage: Max input current requirement is 0.4A
  • Holding current: 0.1A
  • Request to exit: modular - 3A @ 125VAC /2A @ 30VDC

ANSI/BHMA

  • ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
  • With FSIC interchangeable core cylinders: Grade 1 operational, Grade 2 security
  • With SFIC interchangeable core cylinders: Grade 1 operational, Grade 3 security



ICC

  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities



UL

  • UL 10C listed 3-hour fire door
    • A label single doors, 4' x 10'
    • Letter F and UL symbol on latch front indicate listing
  • UL 437 listed when using Primus high-security UL 437 cylinder
  • UL 294 access control performance levels
    • Destructive attack, Level 1
    • Line security, Level 1
    • Standby power, Level 1
    • Endurance, Level IV (with DM, or LX - Endurance, Level I)
  • ULC-S319 Class III



BAA/TAA

  • Meets BAA (Buy American Act)

Mortise lock and cylinder front housing finishes

605 Bright brass

605 Bright brass

606 Satin brass

606 Satin brass

612 Satin bronze

612 Satin bronze

613 Oil rubbed bronze

613 Oil rubbed bronze

625 Bright chrome

625 Bright chrome

626 Satin chrome

626 Satin chrome

626AM Satin chrome with antimicrobial coating

626AM Satin chrome with antimicrobial coating

630 Satin stainless steel

630 Satin stainless steel

630AM Satin stainless steel with antimicrobial coating

630AM Satin stainless steel with antimicrobial coating

Key cylinder, plug and core face finishes

606 Satin brass

606 Satin brass

522 Bronze (simulated equivalent)

522 Bronze (simulated equivalent)

626 Satin chrome

626 Satin chrome

Mortise cylinders and housings are not included with HL Series push-pull latches and must be ordered separately. The following are keying options available.



Open keyways upgradeable to Primus RP

  • Schlage Classic Obverse open keyways, including Schlage C
  • Classic Obverse keyways gain patent protection and restricted, geography exclusivity in a Primus RP cylinder
  • Available in Conventional and FSIC cylinder formats



Patented keyways upgradeable to Primus XP

  • Everest 29™ S keyways include S123 (default keyway)
  • Everest 29™ T restricted keyways
  • Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an SFIC cylinders
  • Everest 29™ keyways gain restricted, geography exclusivity in a Primus XP cylinder
  • Available in Conventional and FSIC cylinder formats



Small Format Interchangeable Cores (SFIC)

  • Everest 29™ R restricted keyway family



Master Keying

  • Factory master keying available
