L Series Motorized Latch Retraction Lock

Quiet control is the hallmark of these L Series locks. Three functions offer latch retraction for momentary or continuous operation. Three additional functions also feature separately managed lever control. All offer the same Grade 1, fire-rated quality lock you expect from Schlage.

Looking for more information? Connect with an Allegion team member for help.

Overview

Latch retraction capable L Series Grade 1 locks create application opportunities across many markets whether the need is security, controlled access or hands-free operation. They can replace the need for electric strike use in a form that is more secure and aesthetically pleasing. Quiet operation makes them ideal for Health Care environments or anywhere repeat user exit and entry can become an annoyance.

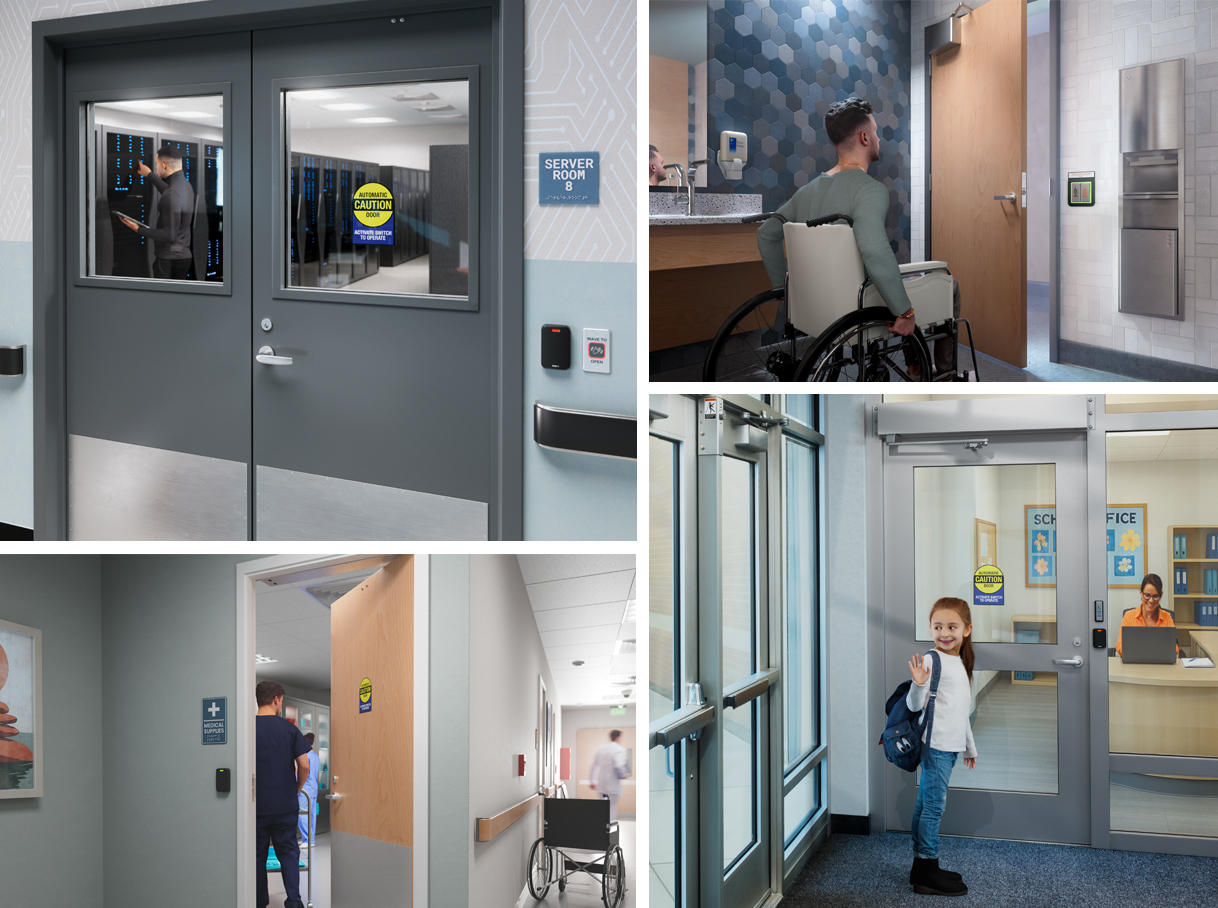

Use in conjunction with an auto operator

  • Accessible public restrooms
  • High security data storage areas
  • Hands-free entries for infection control and clean room applications
  • Spaces requiring cart access such as storage areas
  • Loading dock single delivery doors

Low traffic openings where limited or timed access is needed

  • Conference or training areas
  • Daytime employee access
  • Service/utility closets

 K-12

  • Visitor entrance vestibules
  • Administration office access
  • Classroom doors with centralized lockdown

 Heavy Duty

 Monitoring Options

 Primus Upgradeable

Schlage 101 icon

Electrified Locks

For frequently asked questions, educational resources and technical product materials visit the Electrified Locks 101 page.

Security

  • Tested and certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
  • Security blocking hub prevents lock access by removing levers
  • Lock status options include request to exit (RX) and latchbolt (LX) monitoring
  • Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
  • Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security



Aesthetics

  • Activations for both latch retraction and lever control are managed by ultra-quiet motors inside the chassis
  • For lever control functions low holding current produces minimal heat, eliminating “hot levers” in electrically locking applications
  • 33 lever styles constructed of solid brass or solid stainless steel offer a strong-yet-comfortable feel
  • Additional style options include five roses and two escutcheons
  • Locking lever bushing eliminates exposed screws on inside levers
  • 12 available finishes (depending on lever style) with options for antimicrobial coating
  • All levers suite with Von Duprin exit devices, along with related products: L Series Grade 1 mortise lock, multipoint locks, and LT Series tubular locks



Functions

  • Three keyed and non-keyed latch retraction only functions
  • Three latch retraction plus lever control functions
  • See separate web pages for L Series electrified and mechanical mortise lock function details



Installation simplicity

  • Fits the same door prep as an electrified L Series lock for easy upgrades
  • Case-mounted switch allows field selectable fail safe/fail secure setting for functions with lever control
  • Modular design allows RX feature to be added at a later time without opening the lock case
  • Field reversible latch bolt allows handing change without opening case



Built to Last

  • Two piece anti-friction tongue in latch bolt reduces wear
  • Breakaway spindle keeps door secured in the event of vandalism
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
  • 10-year mechanical warranty, 3-year electro-mechanical (see warranty for full terms)

All locks featuring lever control are field selectable Electrically Locked (EL) or Electrically Unlocked (EU).

Non-keyed functions

  • L9510 Passage latch with motorized latch retraction

Keyed functions

  • L9580 Storeroom lock with motorized latch retraction, outside cylinder
  • L9582 Institution lock with motorized latch retraction, double cylinder

Keyed functions with lever control

  • L9692EL/EU Electrically locking/unlocking outside lever, outside cylinder with motorized latch retraction
  • L9695EL/EU Electrically locking/unlocking both levers, double cylinder with motorized latch retraction
  • L9696EL/EU Electrically locking/unlocking inside lever, double cylinder with motorized latch retraction

Other function options

Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
  • Spacing: Lever to cylinder 3-7/8" (98 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 4" thick - specify door thickness if over 1-3/4" and position in door (EE, EI, EO, ED)
  • Field reversible handing

Trim Options

  • 33 lever designs made of forged brass or cast Stainless Steel
  • Knurled tactile warning available on 02, 03, M51, M52, and M81 lever designs; milled tactile warning available on 01, 05, 06, 07, 12, 17, 18, ME1, ME2, and ME3 lever designs
  • L escutcheons: 7-15⁄16” x 1-3⁄4” x 7⁄16” (202 mm x 44 mm x 11 mm); cold-forged brass and Stainless Steel
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass and Stainless Steel
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - wrought brass and stainless steel; AVA 2-5/8" (67 mm) and MER 2-5/8" (67 mm) - forged brass
  • Available 1/8" thick lock case lead lining option for use in X-ray or other rooms with radiation concern
  • Three thumbturn styles available: standard ADA, large ADA, and basic

Latches

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm)
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"

Electric

  • Input voltage: 24V DC
  • Operating mode: Fail Safe or Fail Secure via switch on chassis (lever control functions only)
  • Current draw: 24V operating voltage: Max input current requirement is 1.4 amp latch retraction; with lever control: 1.8 amp
  • Holding current requirement is 0.1 amp latch retraction; with lever control: 0.2 amp
  • Request to exit: modular - 2A @ 30VDC
  • Latch bolt monitor: 2A @ 30VDC

ANSI/BHMA

  • ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
  • With FSIC interchangeable core cylinders: Grade 1 operational, Grade 2 security
  • With SFIC interchangeable core cylinders: Grade 1 operational, Grade 3 security

ICC

  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

  • UL 10C and CAN/ULC-S104 listed 3-hour fire door (single point locking applications only)
    • A label single doors, 4' x 10' and pairs 8' x 10'
    • Letter F and UL symbol on latch front indicate listing
  • UL 437 listed when using Primus high-security UL 437 cylinder
  • UL 294 access control performance levels
    • Destructive attack, Level 1
    • Line security, Level 1
    • Standby power, Level 1
    • Endurance, Level IV (with DM, or LX - Endurance, Level I)

California Fire Code

  • All levers with a return to door of 1/2" (64 mm) or less comply (formerly Title 19, California State Fire Marshal Standard)

Windstorm

  • Miami-Dade NOA and Florida Building Commission listings
  • Texas Department of Insurance (TDI) for impact and non-impact applications

BAA/TAA

  • Meets BAA (Buy American Act)

Mortise lock and cylinder front housing finishes

605 Bright brass

605 Bright brass

606 Satin brass

606 Satin brass

609 Antique brass

609 Antique brass

612 Satin bronze

612 Satin bronze

613 Oil rubbed bronze

613 Oil rubbed bronze

619 Satin nickel

619 Satin nickel

622 Matte black

622 Matte black

625 Bright chrome

625 Bright chrome

626 Satin chrome

626 Satin chrome

626AM Satin chrome with antimicrobial coating

626AM Satin chrome with antimicrobial coating

629 Bright stainless steel

629 Bright stainless steel

630 Satin stainless steel

630 Satin stainless steel

630AM Satin stainless steel with antimicrobial coating

630AM Satin stainless steel with antimicrobial coating

643e Aged bronze (simulated equivalent)

643e Aged bronze (simulated equivalent)

Key cylinder, plug and core face finishes

606 Satin brass

606 Satin brass

522 Bronze (simulated equivalent)

522 Bronze (simulated equivalent)

622 Matte black

622 Matte black

626 Satin chrome

626 Satin chrome

Open keyways upgradeable to Primus RP

  • Schlage Classic Obverse open keyways, including Schlage C
  • Classic Obverse keyways gain patent protection and restricted, geographic exclusivity in a Primus RP cylinder
  • Available in Conventional and FSIC cylinder formats



Patented keyways upgradeable to Primus XP

  • Everest 29™ S keyways include S123 (default keyway)
  • Everest 29™ T restricted keyways
  • Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of SFIC cylinders
  • Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder
  • Available in Conventional and FSIC cylinder formats



Small Format Interchangeable Cores (SFIC)

  • Everest 29™ R restricted keyway family



Master Keying

  • Factory master keying available
