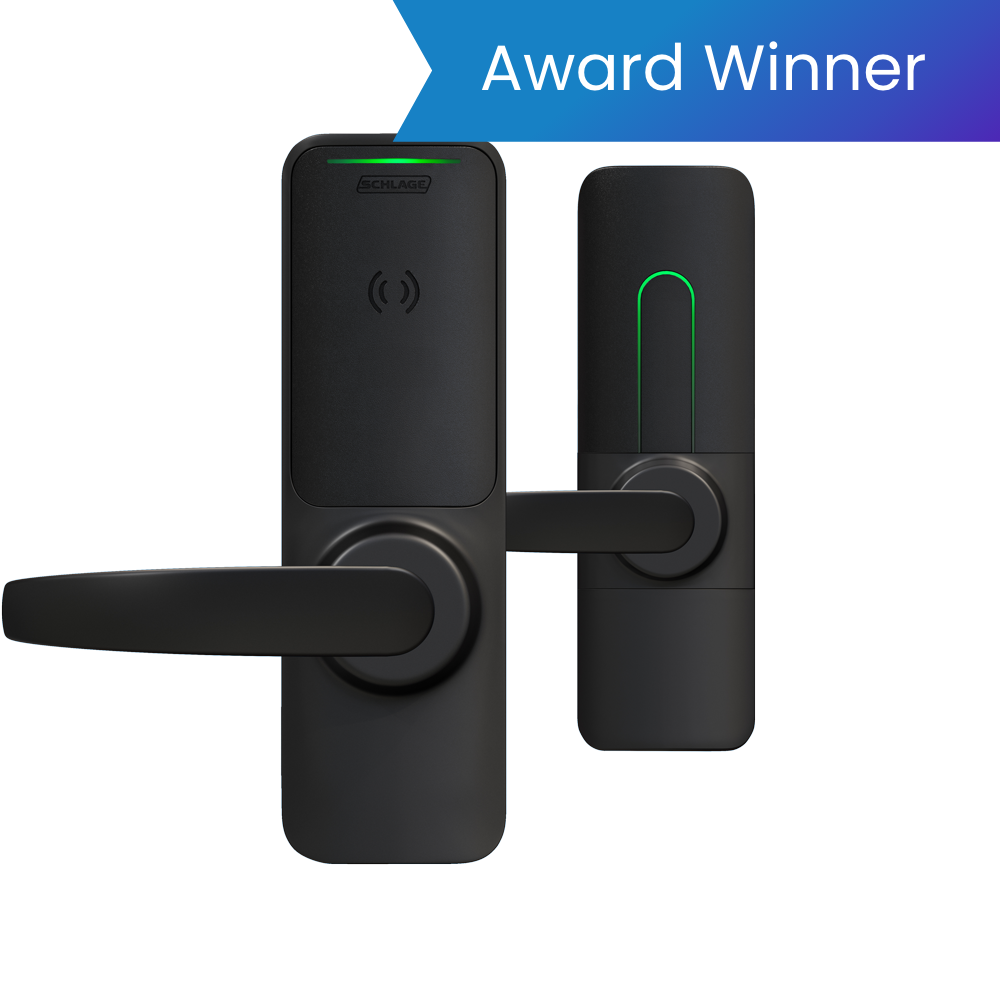

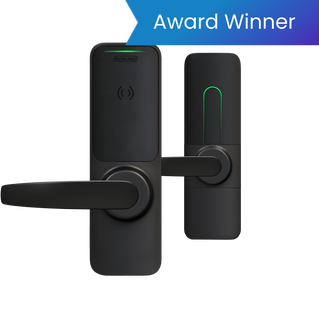

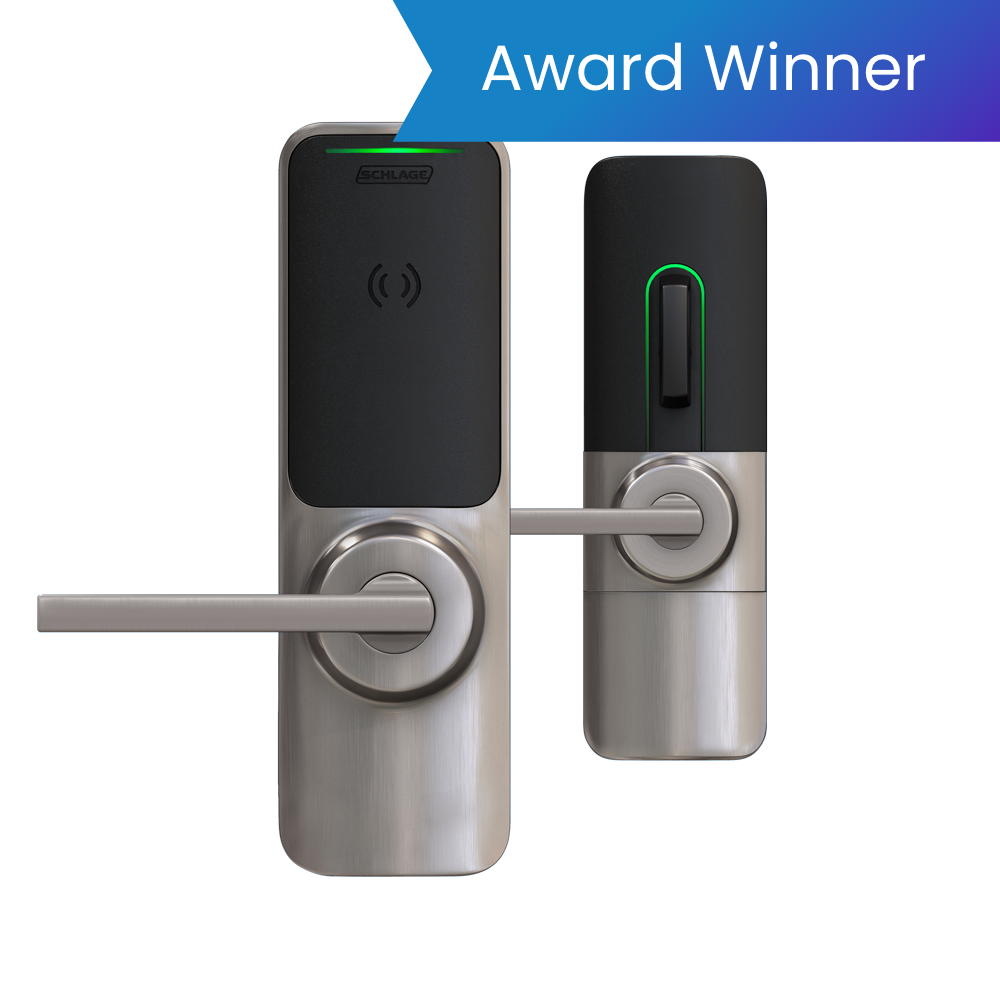

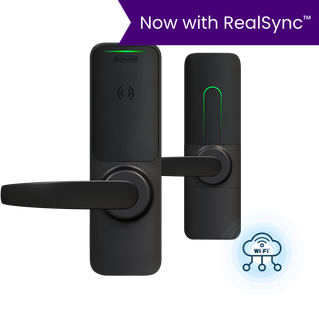

XE360™ Series Wireless Tubular Lock

• Next level design inside and out
• Credential support includes Schlage MIFARE®, Bluetooth® and NFC mobile¹
• Available with LED indicator or interior push button with LED indicator
• Advanced encryption keeps data and communications safe
• Wireless configuration using connected smartphones or tablets
• No-Tour or offline system capability
• Ready for the future with the innovative FleX Module^TM that allows for communication type, memory and encryption upgrades
• Exceeds Grade 2 testing for exceptional quality and reliability
• Open architecture – interoperable and simple for software alliances to integrate
• Works seamlessly with other Schlage wireless locks, including Schlage Control²
• Uniquely concealed key override standard on all locks
• Suites with other Schlage families to provide attractive options to meet the requirements of nearly any opening


¹ Use of mobile credential is dependent on availability of compatible mobile credential
² Check with your Proptech or PACS provider for specific support

Schlage XE360 Series reader

• Multi-technology; supports smart (13.56 MHz), Bluetooth® (LE, 2.4 GHz) and NFC mobile credentials¹

Connectivity options

• Mobile (Bluetooth® at the lock)
• No-Tour; using smart² or mobile credentials

Communication and encryption standards - lock

• Bluetooth Low Energy (version 5)
• Advanced Encryption Standard (AES), 128- and 256-bit

Communication and encryption standards – mobile credential

• Bluetooth Low Energy: AES 256-bit using CBC & ECDSA 256

Available status signals³

• Battery level
• Door position
• Lock/unlock
• Request-to-exit

Additional

• Users: Up to 2,000⁴
• Audits: Up to 2,000⁴
• Battery life: Up to 2 years using 4 AA batteries⁵
• Operating temperature:
  • Exterior: -31° to 151°F (-35° to 66°C)
  • Interior: 32° to 120°F (0° to 49°C)
• Operating humidity: 0 - 100% non-condensing


For full electronic specifications please reference the XE360 wireless tubular lock datasheet.

¹ Use of mobile credential is dependent on availability of compatible mobile credential
² No-Tour applications utilizing Schlage MIFARE smart credentials require a minimum of 1K byte memory
³ Consult your access control software provider for specific scope of support
⁴ Maximum storage capacity of lock; can vary by access control software
⁵ Assuming default settings, 40 actuations per day

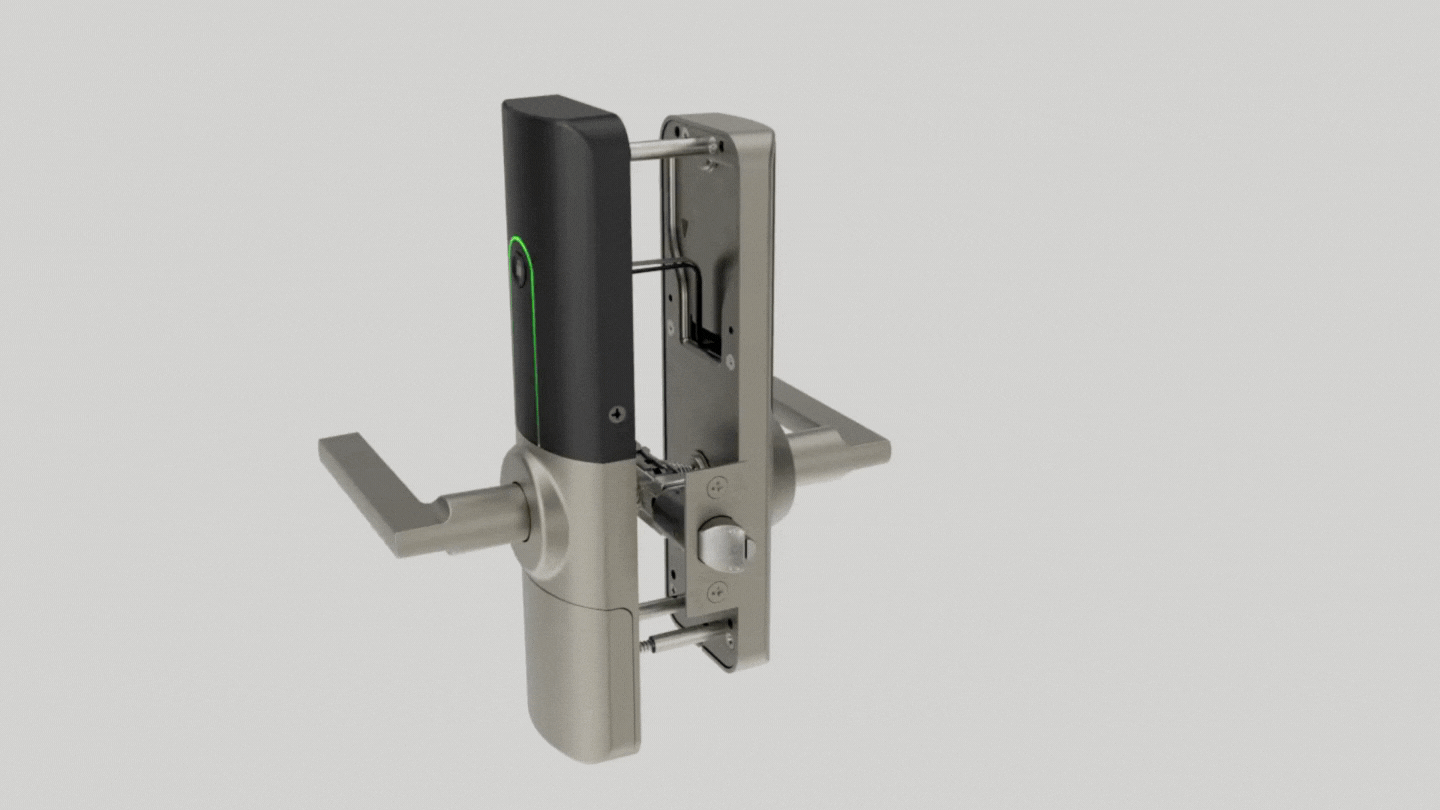

Chassis options

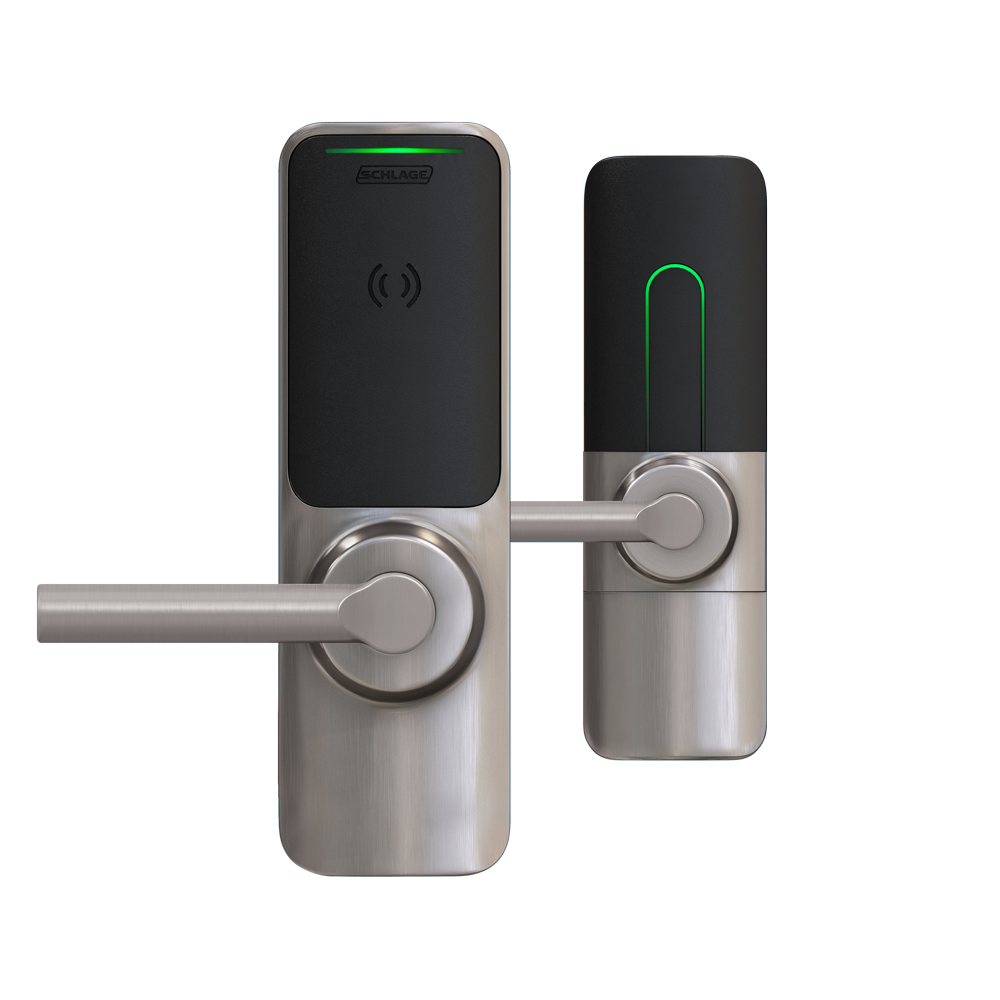

• Tubular with interior LED indicator (I)
• Tubular with interior push button with LED indicator (B)

Materials

• All-metal chassis and escutcheon; exterior polycarbonate elements

• Zinc levers

Hardware

• Door thickness: 1 3⁄4"
• Backset: 2 3/4”, field adjustable to 2 3⁄8"
• Latchbolt: 1" x 2 1⁄4"; 1” edge bore required
• Strike: Standard: 1 1⁄8" lip
• Stile width: Minimum 4 1⁄4"

Cylinder and keys

• Standard: Schlage Classic C Keyway, Conventional 6-pin cylinder with two keys
• Optional: Schlage S123 Everest 29 S Keyway, Conventional 5-pin cylinder with two keys

For full mechanical specifications please reference the XE360 tubular lock datasheet.

XE360 supports smart, Bluetooth® and NFC mobile credentials¹.

Credential technology support

• Smart (13.56 MHz); including Schlage MIFARE Classic and Schlage MIFARE DESFire EV1, EV2, EV3
• Bluetooth® mobile (LE, 2.4 GHz)
• NFC mobile

At Schlage, we understand that credentials are key to a successful access control plan. That is why we offer Schlage Credential Services - designed to deliver a whole new level of security, adaptability, and flexibility.

Credential Services from Schlage include:

• Custom Encryption Keys
• Default Keys
• CardTrax™
• Custom Format Consulting Services
• Custom Artwork

For full credential compatibilities please reference the XE360 wireless tubular lock datasheet.

¹ Use of mobile credential is dependent on availability of compatible mobile credential

With Indicator (I)

• Storeroom

With Interior Push Button (B)

• Office
• Privacy
• Apartment

Door Position Sensor is recommended for privacy and apartment functions.

Lock function capabilities will vary by access control system.

The open architecture design of the XE360 Series allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program.

Currently, Schlage XE360 can be managed:

• At the lock using a mobile device
• Via smart or mobile credentials when part of a No-Tour system

Visit our Technology Alliances page to see which PACS providers have integrated Schlage XE360 wireless locks along with the associated solution sheets and detailed technical information.

• ANSI/BHMA A156.2-2022 Grade 2
• ANSI/BHMA A156.25-2023 Locked Outdoor Type
• ANSI/BHMA A156.5-2020
• UL 294
• ULC 60839
• UL 10C 3-hour
• CAN/ULC S104 3-hour
• FCC Part 15
• Industry Canada (IC)
• Industry Canada (IC)-RSS210
• ADA Compliant¹
• REACH
• ROHS
• TAA
• FL10356

¹ An extended length lever is available that is designed to lower required operational force and improve rotational grip for higher accessibility.
