B500 Series Grade 2 Deadbolt

Security

• Meets or exceeds ANSI/BHMA Grade 2 operational and security standards
• Solid zinc bolt with hardened steel anti-saw pin
• Upgradeable to UL 10C 3-hour fire rated options (as auxiliary locks) except B562 & B571
• Metal dust box uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
• Free spinning, cylinder collar resists wrenching and prying
• Removeable security shield protects against manipulation of the cylinder driver through the door
• Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• UL 437 listed option resists drilling and physical attack on the cylinder

Aesthetics

• Ten available finishes with option for antimicrobial coating
• Suites with nearly all Schlage and Von Duprin products

Functional Features

• Seven functions include keyless, single cylinder and double cylinder options
• Adjustable backset has a lock-in-place helix design

Built to Last

• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Functions with 180-degree visibility indicator trim options are marked (*). See B500 Series Grade 2 Indication Trim for details.

Non-keyed functions

• B572 Door bolt with coin turn (*)
• B580 Door bolt (ANSI E0192)
• B581 Door bolt with trim (ANSI E01112) (*)

Keyed functions

Single cylinder

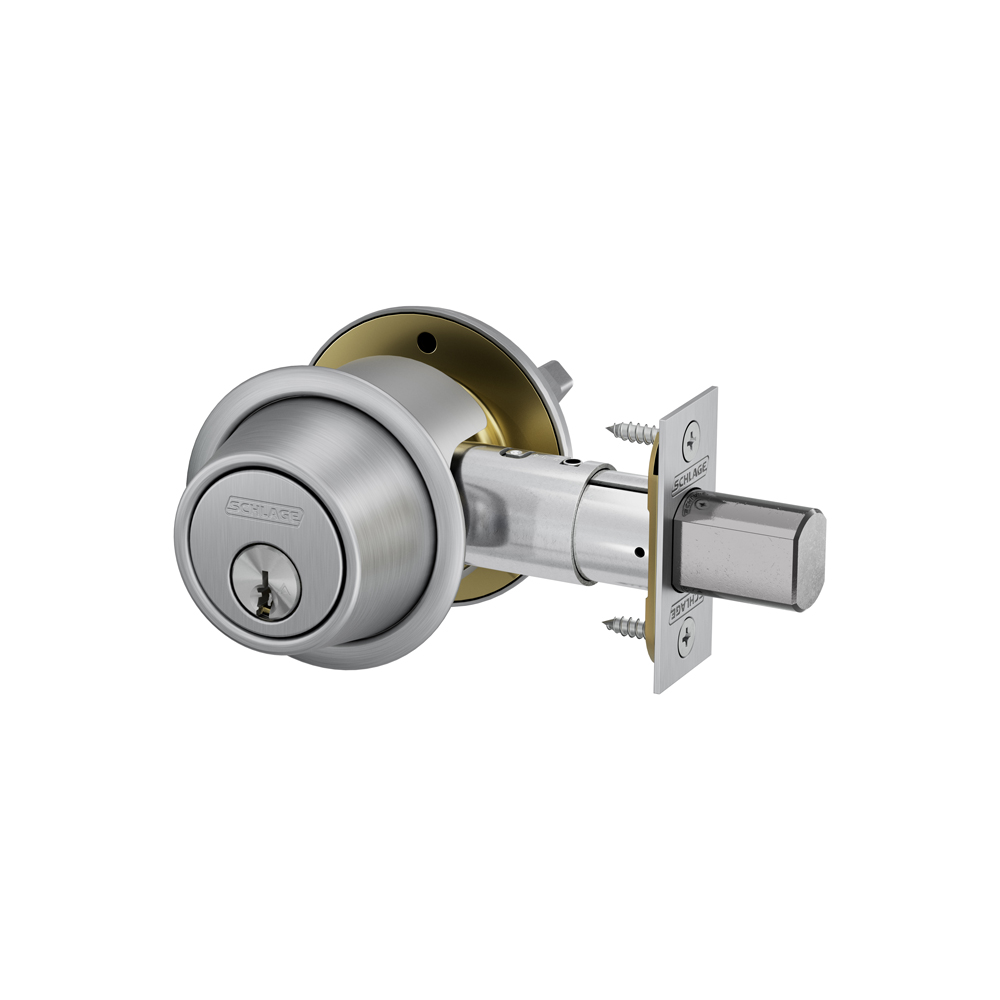

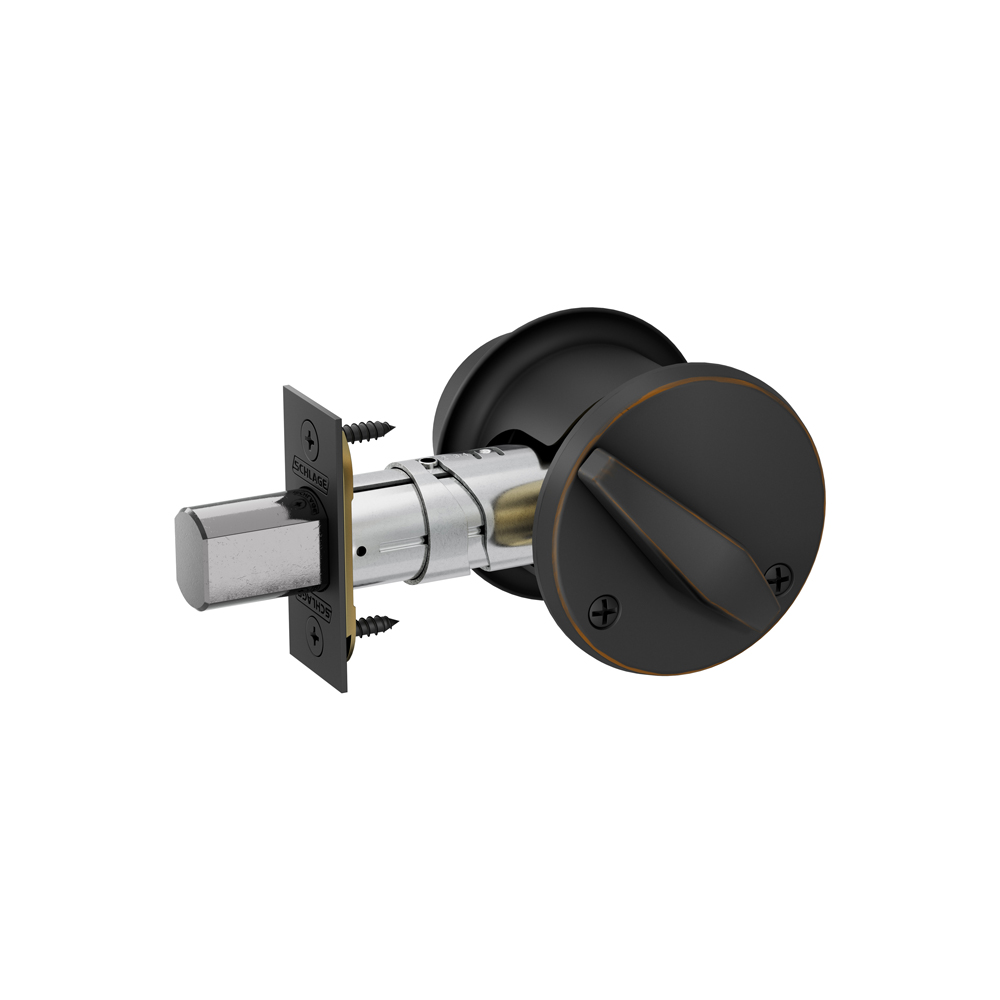

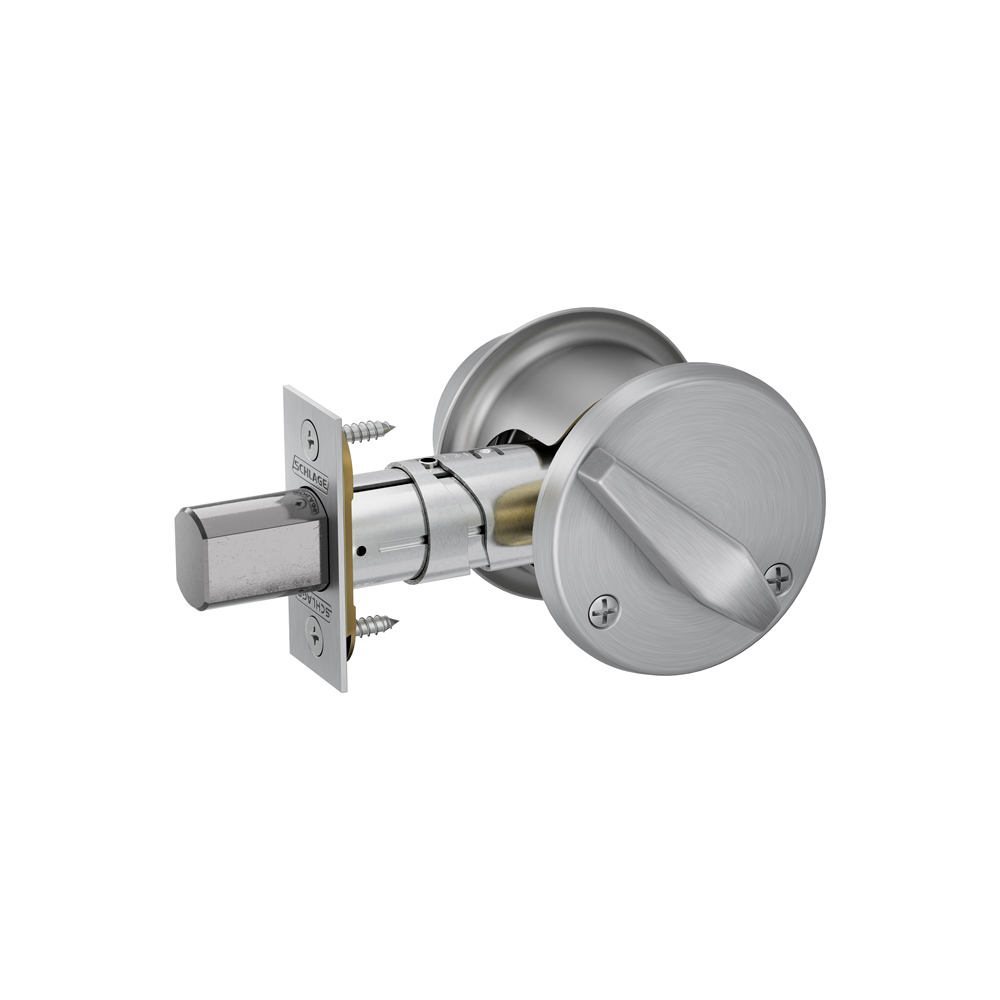

• B560 Single cylinder deadbolt (ANSI E0152) (*)
• B561 Cylinder x blank plate deadbolt (ANSI E0162) (*)
• B563 Classroom deadbolt (ANSI E0172) (*)

Double cylinder

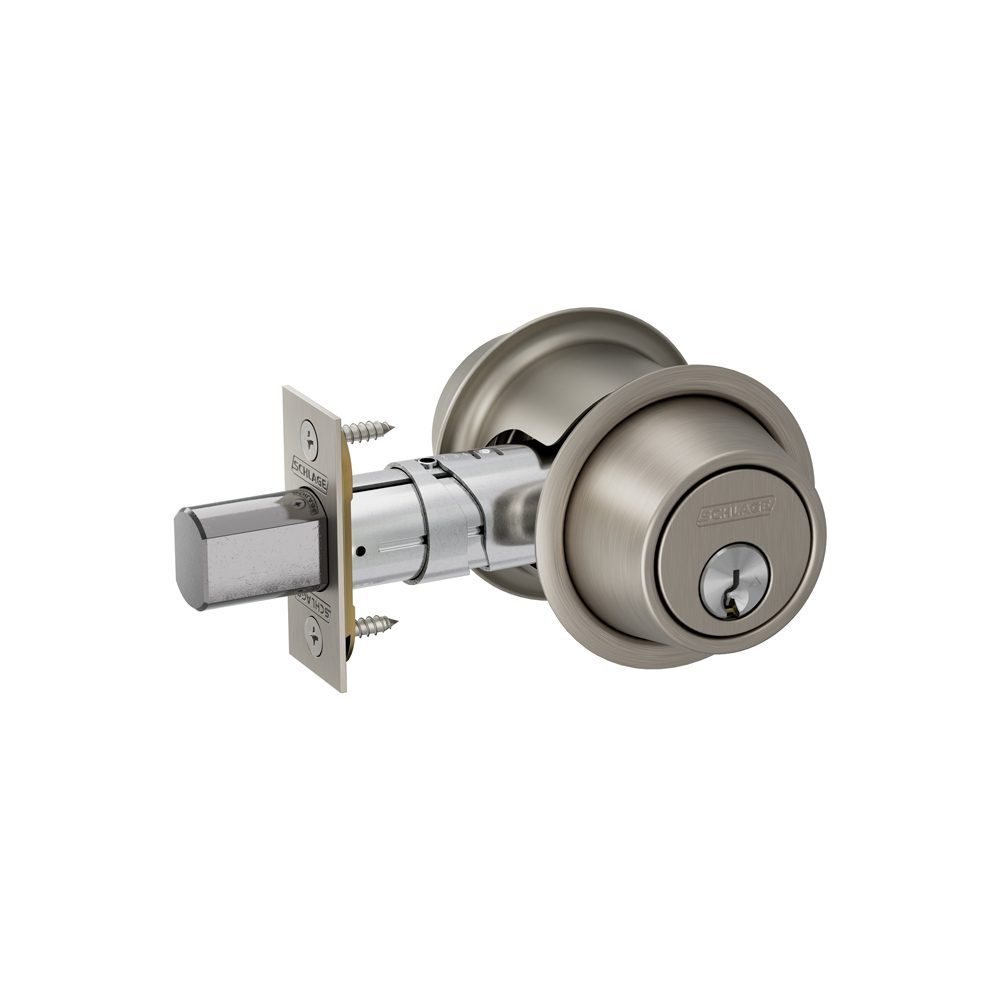

• B562 Double cylinder deadbolt - cylinder x cylinder (ANSI E0142) (*)

Material

• Deadbolt: Zinc with hardened steel anti-saw pin insert
• Trim ring: Stamped trim ring over solid zinc spin ring
• Cylinder: Solid brass in a solid zinc housing
• Dust box: Metal with 3" screws standard

Door Thickness

• Standard door thickness: 1-3/8" to 2-1/4" (35 mm to 57 mm) conventional cylinder or door bolt; 1-3/8" to 2" (35 mm to 51 mm) FSIC or SFIC

Deadbolt

• 1" housing diameter; 0.81" x 0.62" x 1" throw
• Backset: adjustable for 2-3/8" (60 mm) or 2-3/4" (70 mm) standard for standard non-fire-rated and optional fire-rated versions; fire-rated deadbolt with 5" fixed backset optional
• Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; circular drive-in style in and round corner options available
• Strike: 1-1/8" x 2-3/4" (29 mm x 70 mm) with square corners standard; ANSI, round cornered, and thimble options available

ANSI/BHMA

• ANSI/BHMA A156.36-2020, Grade 2 auxiliary lock (except B581)
• With SFIC interchangeable core cylinders: Grade 3

ADA

• ADA compliant thumbturn designs

UL/cUL

• Available UL 10C and CAN/ULC-S104 listed (except B562)
  • 3-hour fire rated as auxiliary locks
  • Letter F and UL symbol on latch front indicate listing
• UL 10B listed for neutral pressure doors
• UL 437 listed when using Primus high-security UL 437 cylinder

California Fire Code

• Meets Building Code requirements

BAA/TAA

• Meets BAA (Buy American Act)

Patented Everest 29™ keyways available in Conventional and FSIC formats

• Everest 29™ S keyways include S123 (default keyway)
• Everest 29™ T restricted keyways
• Everest 29™ R restricted keyways as SL cylinders with the same A2 pinning style of an SFIC cylinders
• Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder
• Everest 29™ Primus UL 437 high security cylinders are available in Conventional format only

Patented Everest 29™ keyways available in Small Format Interchangeable Cores (SFIC)

• Everest 29™ R restricted keyway family

Classic open keyways available in Conventional and FSIC formats

• Schlage Classic Obverse open keyways, including Schlage C
• Classic Obverse keyways gain patent protection and restricted, geography exclusivity in a Primus RP cylinder

Master Keying

• Factory master keying available
