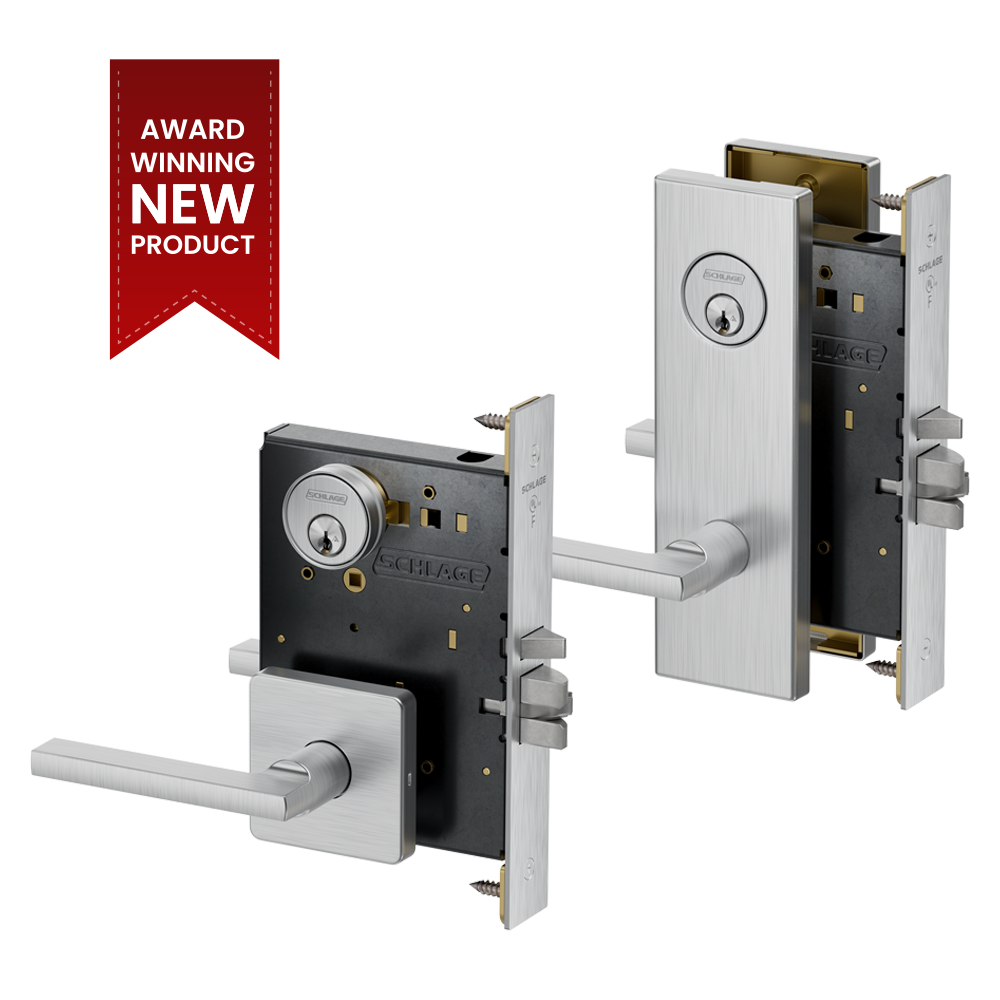

PM Series™ Grade 1 Mortise Deadbolt

Security

• Tested and certified to ANSI/BHMA Grade 1 operational and security standards
• UL Listed for 3-hour fire door
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security

Aesthetics

• Available in sectional trim

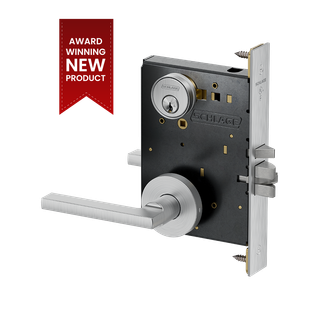

• Six available finishes; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze
• One-sided, 180-degree sectional visual indication trim available on all four functions uses red and white backgrounds to ensure quick readability for color blind individuals

Functions

• Four keyed leverless functions
• Four additional levered deadbolt functions are available in the PM Series section
• For additional mortise deadbolt functions or small case options, see the L Series section

Built to Last

• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• 5-year mechanical warranty  (see warranty for full terms)

All functions listed are available with 180-degree visibility indication trim options.

Keyed deadbolt-only (non-lever) functions

Single Cylinder

• PM460 Cylinder x Thumbturn Mortise Deadbolt (ANSI F17)
• PM463 Cylinder x Cylinder Thumbturn Mortise Deadbolt (ANSI F29)
• PM464 Cylinder Only Mortise Deadbolt (ANSI F18)

Double Cylinder

• PM462 Double Cylinder Mortise Deadbolt (ANSI F16)

For additional mortise deadbolt functions or small case options, see the L Series webpage.

Chassis

• Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
• Case size: 4-7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ. View PM templates here.
• Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
• Field reversible handing

Trim Options

• Large ADA-Compliant Thumbturn option (not available on PM463)
• Wrought brass trim: Sectional (top portion only)
• Lock status indication, single-sided sectional trim available in two message types and offer red and white backgrounds to ensure quick readability for color blind individuals

Latches, Armors, Strikes

• Deadbolt: 1" (25 mm) throw stainless steel
• Backset: 2-3/4" (70 mm) only
• Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
• Strike: 1-1/4" x 4-7/8" (32 mm x 124 mm), no lip standard (optional dust box available)

ANSI/BHMA

• ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
• With FSIC interchangeable core cylinders: Grade 1 operational, Grade 2 security
• With SFIC interchangeable core cylinders: Grade 1 operational, Grade 3 security

ADA Compliant

• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

• UL 10C and CAN/ULC-S104 listed 3-hour fire door
  • A label single doors, 4' x 10' and pairs 8' x 10'
  • Letter F and UL symbol on latch front indicate listing
• UL 437 listed when using Primus high-security UL 437 cylinder

BAA/TAA

• Meets BAA (Buy American Act)

Open keyways upgradeable to Primus RP

• Schlage Classic Obverse open keyways, including Schlage C
• Classic Obverse keyways gain patent protection and restricted, geography exclusivity in a Primus RP cylinder
• Available in Conventional and FSIC cylinder formats

Patented keyways upgradeable to Primus XP

• Everest 29™ S keyways include S123 (default keyway)
• Everest 29™ T restricted keyways
• Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an SFIC cylinders
• Everest 29™ keyways gain restricted, geography exclusivity in a Primus XP cylinder
• Available in Conventional and FSIC cylinder formats

Small Format Interchangeable Cores (SFIC)

• Everest 29™ R restricted keyway family

Master Keying

• Factory master keying available

Key System Management

• See Overtur® Key System Management for information on how to view, manage, track and update your key system in a secure, cloud-based environment.
