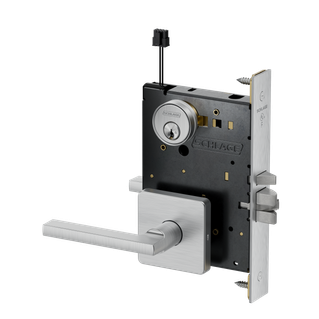

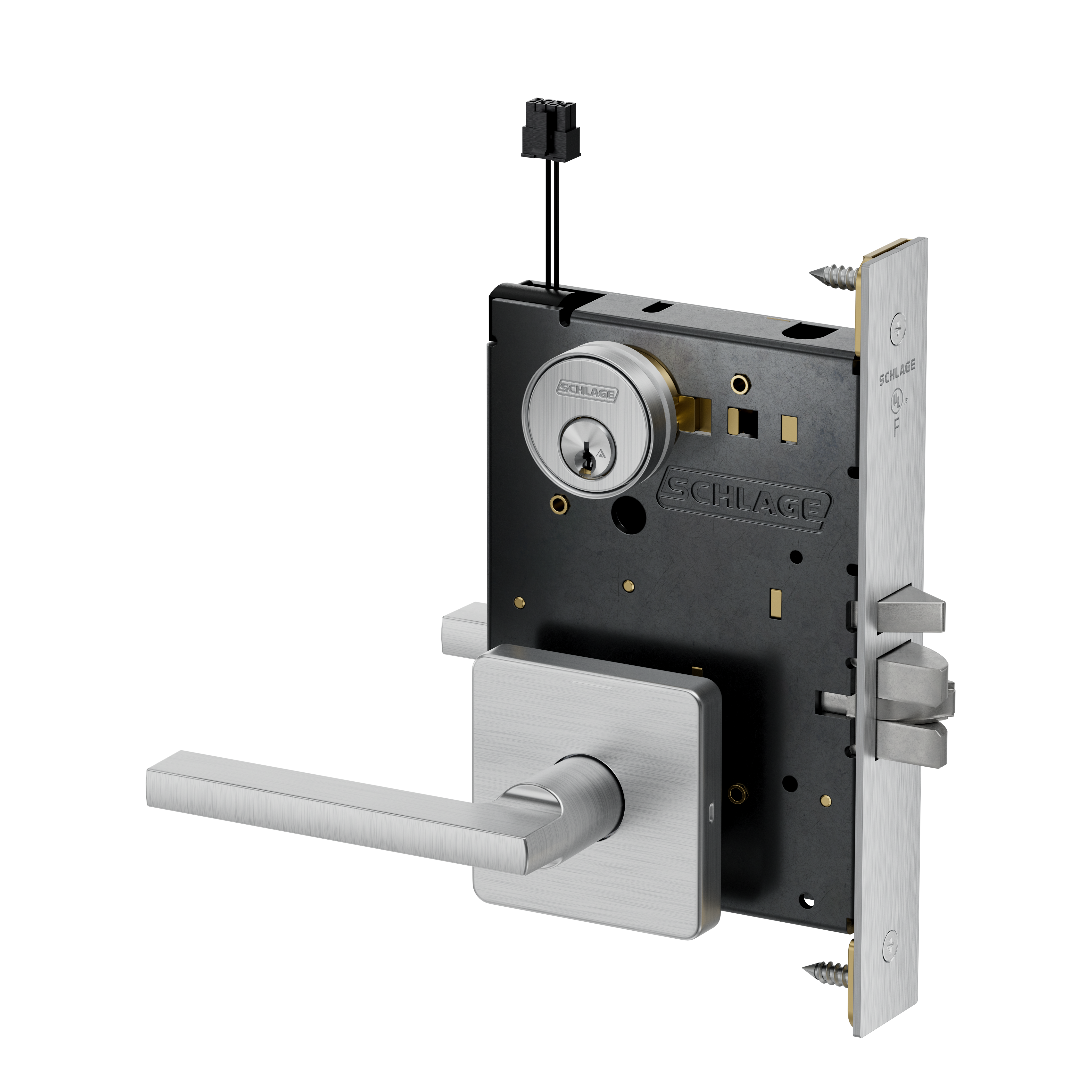

PM Series™ Electrified Mortise Lock

Security

• Certified to ANSI/BHMA Grade 1 operational and security standards
• UL listed for 3-hour fire door
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Lock status options include request to exit (RX) and latchbolt (LX) monitoring (availability varies by function)
• Patented Everest 29™ S123 keyway provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Extensive cylinder support for Schlage and 7 non-Schlage formats

Aesthetics

• Activations for lever control are managed by an ultra-quiet motor inside the chassis
• Low holding current produces minimal heat, eliminating “hot levers” in electrically locking applications
• 10 lever styles constructed of zinc offer a solid-yet-comfortable feel
• Performance Series exclusive levers (Selena and Playa) and D square rose are shared with the PT Series™ tubular lock
• Additional style options include two roses, and one escutcheon
• Six available finishes across all levers and trims; Satin Chrome, Satin Nickel, Bright Chrome, Matte Black, Aged bronze, Oil Rubbed Bronze
• All levers suite with Performance Series tubular locks, eight levers suite with Schlage's broader offering (L, ND, ALX, and PC Series), as well as Von Duprin exit devices

Functions

• 3 electrified functions (2 keyed one non-keyed).
• Case-mounted switch allows field selectable EL/EU setting however, when ordering, please specify EL or EU
• See PM Series Cut Sheet for Function Details or mechanical mortise lock function details

Installation Simplicity

• Auto detects 12 or 24V DC
• Low maximum current draw allows multiple locks on a single power supply
• Case-mounted switch allows field selectable fail safe/fail secure setting
• Modular design allows RX feature to be added at a later time without opening the lock case
• Field reversible latch bolt allows handing change without opening case
• Comes standard with Allegion Connect Molex connector and wiring harness

Built to Perform

• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• 5 year mechanical 2-year electro-mechanical (see warranty for full terms)

All functions are field selectable Electrically Locked (EL) or Electrically Unlocked (EU).

Electrified non-keyed functions

• PM090EL/EU Electrically locking/unlocking outside lever, no cylinder
• PM091EL/EU Electrically locking/unlocking both levers, no cylinder

Electrified keyed non-deadbolt functions

• PM092EL/EU Electrically locking/unlocking outside lever, outside cylinder

Chassis

• Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
• Case size: 4-7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.View PM templates here.
• Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
• Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
• Field reversible handing

Trim Options

• 10 Lever Styles - Zinc
• N escutcheons: 7 7⁄8” x 2 1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); Wrought brass
• A Small Round 2-1/8" (54 mm) diameter - Zinc
• C Large Round Rose 2-9/16" (65 mm) - Zinc
• D Large Square Rose 2-9/16" (65 mm) - Zinc
• Large Thumbturn style is ADA qualified

Latches, Armors, Strikes

• Backset: 2-3/4" (70 mm) only
• Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
• Deadbolt: 1" (25 mm) throw stainless steel
• Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
• Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
• Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"

Electric

• Input voltage: auto detects 12-24V DC
• Operating mode: Fail Safe or Fail Secure via switch on chassis
• Current draw: 12V operating voltage: Max input current requirement is 1A
• 24V operating voltage: Max input current requirement is 0.4A
• Holding current: 0.1A
• Request to exit: modular - 2 A, 30 V DC, Resistive or 1 pf
• Latch bolt monitor - Rating: 2A @ 30V DC, Resistive or 1 pf
• Operating Temperature - Maximum: +120°F (+49°C), Minimum: -32°F (0°C)

ANSI/BHMA

• ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
• With FSIC interchangeable core cylinders: Grade 1 operational, Grade 2 security
• With SFIC interchangeable core cylinders: Grade 1 operational, Grade 3 security

ADA Complaint

• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

• UL 10C and CAN/ULC-S104 listed 3-hour fire door (single point locking applications only)
  • A label single doors, 4' x 10' and pairs 8' x 10'
  • Letter F and UL symbol on latch front indicate listing
• UL 437 listed when using Primus high-security UL 437 cylinder
• UL 294 access control performance levels
  • Destructive attack, Level 1
  • Line security, Level 1
  • Standby power, Level 1
  • Endurance, Level IV (with DM, or LX - Endurance, Level I)
• ULC-S319 Class III

California Fire Code

• All levers with a return to door of 1/2" (64 mm) or less comply (formerly Title 19, California State Fire Marshal Standard)

Open keyways upgradeable to Primus RP

• Schlage Classic Obverse open keyways, including Schlage C
• Classic Obverse keyways gain patent protection and restricted, geographic exclusivity in a Primus RP cylinder
• Available in Conventional and FSIC cylinder formats

Patented keyways upgradeable to Primus XP

• Everest 29™ S keyways include S123 (default keyway)
• Everest 29™ T restricted keyways
• Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an SFIC cylinders
• Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder
• Available in Conventional and FSIC cylinder formats

Small Format Interchangeable Cores (SFIC)

• Everest 29™ R restricted keyway family

Master Keying

• Factory master keying available

Key System Management

• See Overtur® Key System Management for information on how to view, manage, track and update your key system in a secure, cloud-based environment

Category Information

• Schlage Performance Series Sales Sheet
• Schlage Performance Series Website

Product Information

• Schlage PM Series Cut Sheet
• Schlage PM Series Electrified Data Sheet
• Allegion Commercial Warranties

Related Product Information

• Schlage PC Series Cut Sheet
• Schlage PT Series Cut Sheet
• Schlage Key Systems, Cylinders and Keys Catalog

Technical Resources

• Schlage PM Series Service Manual (COMING SOON!)
• Schlage PM Series Mortise Installation Instructions
• Schlage PM Series Mortise Electrified Installation Instructions
• Schlage PM Series Sectional Indicator Installation Instructions
• Schlage PM Series PM060 Installation Instructions
• Schlage PM Series PM175 PM176 Installation Instructions
• Schlage PM Series PM026 Installation Instructions
• Schlage PM Series Mortise Installation Instructions
• Schlage PM Series Template Index
